Cloud Integrations & Messaging

This section is about multiple applications communicating with each other.

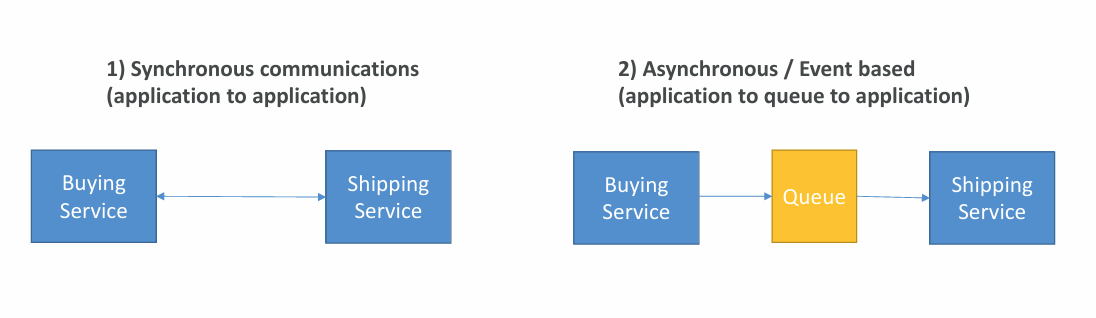

1. Synchronous communication (application to application)
   • Can be problematic if there are sudden spikes of traffic
2. Asynchronous / Event-based communication (application to queue to application)
   • It is called decoupling of applications
     • SQS: queue model
     • SNS: pub / sub model
     • Kinesis: real-time data streaming model
   • Those services can scale independently from our application

SQS #

SQS = Simple Queue Service. #

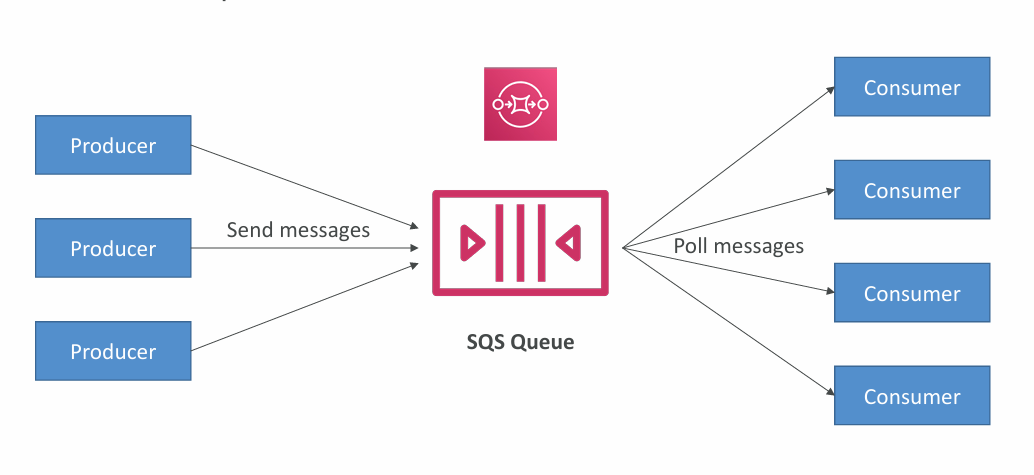

SQS - Standard Queue #

• Oldest AWS offering (over 10 years old)
• Fully managed, serverless service used to decouple applications
• Sales from 1 message per second to 10,000s per second
• Default messages retention: 4 days, maximum 14 days
• No limit to how many messages can be in the queue
• Messages are deleted after they’re read by consumers (applications)
• Low latency
• Consumers share the work to read messages and scale horizontally

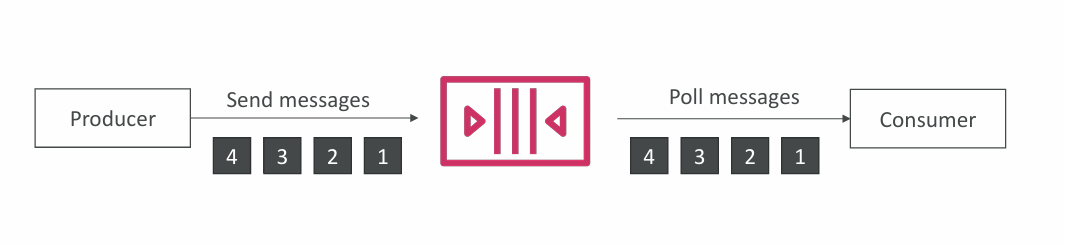

SQS - FIFO Queue #

FIFO = First in First Out (ordering of messages in the queue) #

• Messages are processed in order by the consumer
• Ordering by Message Group ID (all messages in the same group are ordered) – mandatory parameter

SQS - Consuming Messages #

• Consumers (running on EC2 instances, servers, or AWS Lambda)…
• Poll SQS for messages (receive up to 10 messages at a time)
• Process the messages (example: insert the message into an RDS database)
• Delete the messages using the DeleteMessage API

Amazon SQS - Security #

• Encryption:
  • In‑flight via HTTPS
  • At‑rest with KMS keys
  • Optional client‑side encryption for full control
• Access control:
  • IAM policies govern who can call SQS APIs
  • SQS access policies (like S3 bucket policies) enable cross‑account access
  • Useful for allowing services such as SNS or S3 to send messages to a queue

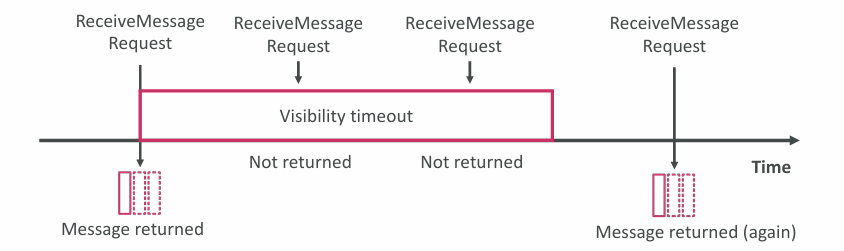

SQS - Message Visibility Timeout #

• Once a consumer reads a message, it becomes invisible to others
• Default visibility timeout is 30 seconds - the window to finish processing
• When the timeout expires, the message becomes visible again
• If processing isn’t finished in time, the message may be processed twice
• Consumers can extend the timeout using ChangeMessageVisibility
• Very long timeouts delay retries if a consumer crashes
• Very short timeouts increase the chance of duplicate processing

Amazon SQS - Long Polling #

• Consumers can wait for messages to arrive instead of returning immediately
• This is Long Polling, which reduces API calls and improves efficiency/latency
• Wait time ranges from 1-20 seconds (20 seconds recommended)
• Preferable to short polling

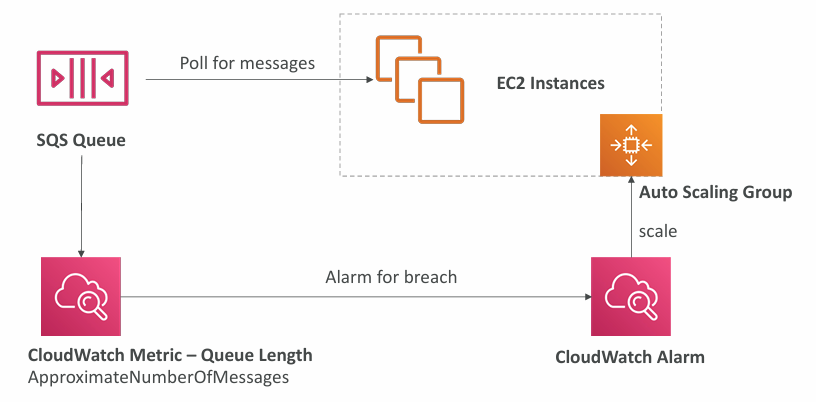

SQS with ASG #

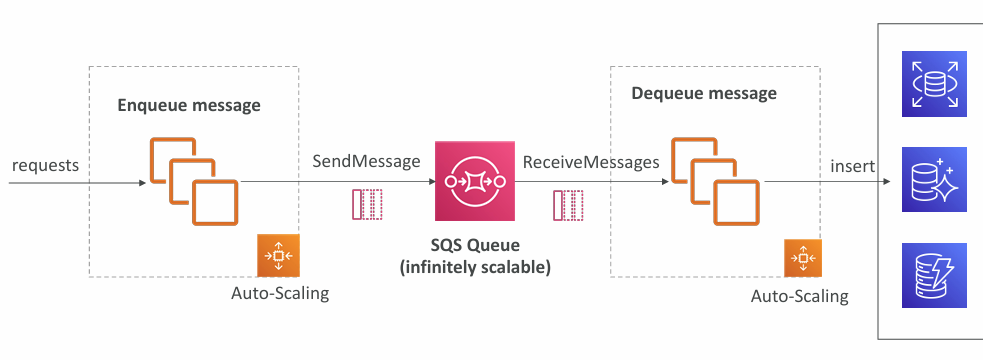

SQS as a buffer to database writes #

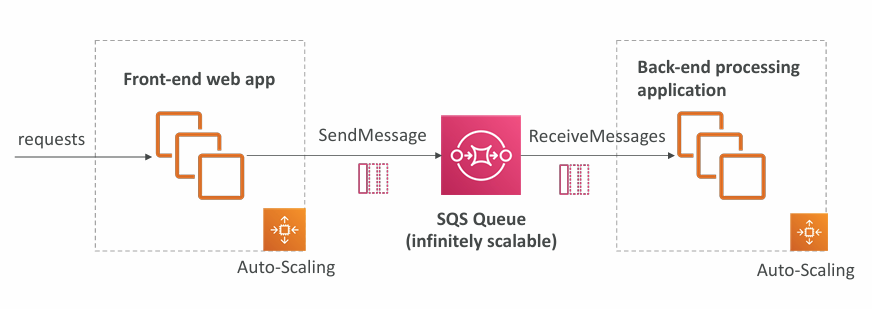

SQS to decouple between application tiers #

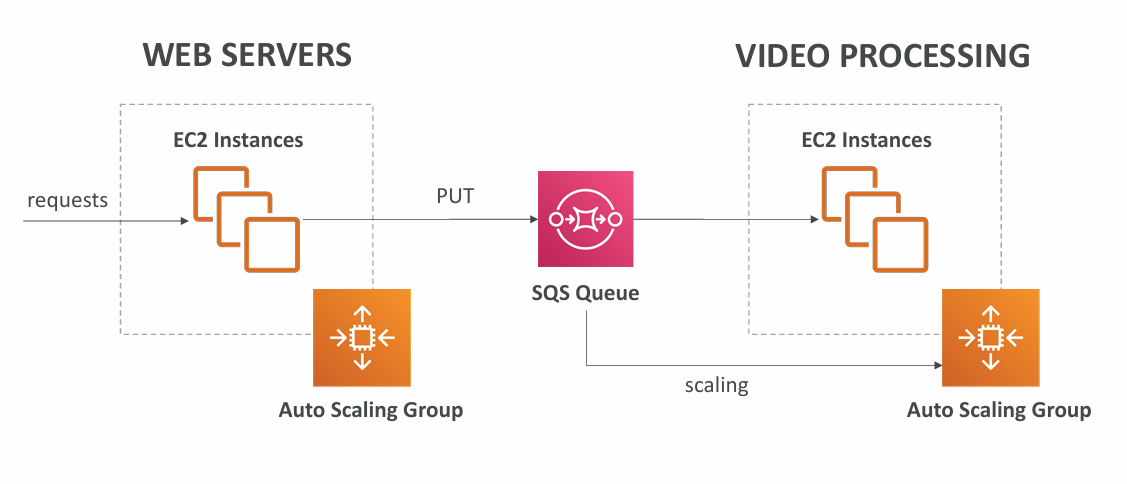

Example video-processing pipeline with SQS:

‼️ Note: Worker extends visibility timeout during long processing was described earlier. Explainer:

1. Video processing is long‑running

Transcoding a video can take minutes / tens of minutes / sometimes hours.

Default SQS visibility timeout is 30 seconds, which is nowhere near enough.

2. Workers must extend visibility timeout

Workers typically call:

ChangeMessageVisibility

to extend the timeout periodically while processing.

This prevents:

• another worker from picking up the same message
• duplicate processing
• corrupted output
• race conditions

3. It’s a core part of SQS‑based pipelines

More info: Visibility Timeout

Amazon Kinesis #

🏅 Solutions Architect Associate level extension: Kinesis - SAAC03.

Kinesis = real-time big data streaming. #

Managed service to collect, process and analyze real-time streaming data at any scale.

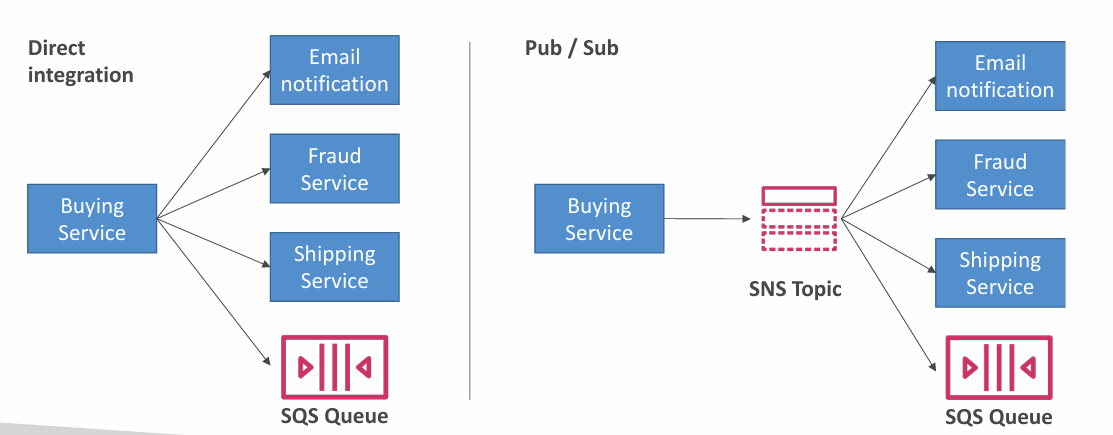

Amazon SNS #

SNS = Simple Notification Service. #

SNS is sending one message to multiple receivers.

• The “event publishers” only sending message to one SNS topic
• As many “event publishers” as we want to listen to the SNS topic notifications
• Each subscriber to the topic will get all the messages
• Up to 12,500,000 subscriptions per topic, 100,000 topics limit

SQS vs SNS vs Kinesis #

Amazon MQ #

SQS and SNS are “cloud-native” services. Traditional applications running from on-premises may use open protocols, such as:

• MQTT
• AMQP
• STOMP
• Openwire
• WSS

When migrating to the cloud, instead of re-engineering the application to use SQS and SNS, Amazon MQ can be used instead.

Amazon MQ is a managed message broker service for:

• RabbitMQ

• Active MQ

• Amazon MQ doesn’t scale as much as SQS / SNS

• Amazon MQ runs on servers, can run in Multi-AZ with failover

• Amazon MQ has both - queue feature (~SQS) and topic features (~SNS)

Summary #

• SQS
  • Queue service in AWS
  • Multiple Producers, messages kept up to 14 days
  • Multiple Consumers share the read and delete messages when done
  • Used to decouple applications in AWS
• SNS
  • Notification service in AWS
  • Subscribers:
    • Email
    • Lambda
    • SQS
    • HTTP
    • Mobile
    • Others
  • Multiple Subscribers, sending all messages to all of them
  • No message retention
• Kinesis
  • Real-time data streaming
• Amazon MQ
  • Managed message broker for Active MQ and Rabbit MQ in the cloud (MQTT, AMQP protocols)
