Solutions Architect: RDS, Aurora, Elasticache

ℹ️ Associate‑level extension of the Databases section from the AWS Cloud Practitioner series.

RDS #

🏅 Cloud Practitioner-level: Amazon RDS

• RDS stands for Relational Database Service
  • Fully managed service for SQL‑based relational databases
  • Lets you run and maintain cloud‑hosted databases without managing the underlying infrastructure
• Supported engines:
  • PostgreSQL
  • MySQL
  • MariaDB
  • Oracle
  • Microsoft SQL Server
  • IBM DB2
  • Aurora (AWS‑built, cloud‑optimised engine)

RDS - Storage Autoscaling #

• Automatically increases storage on your RDS instance when you start running low
• Removes the need for manual storage adjustments
• You define a Maximum Storage Threshold as the upper limit
• Storage is auto‑expanded when:
  • Free space drops below 10%
  • Low‑storage condition lasts 5 minutes
  • At least 6 hours have passed since the last increase
• Ideal for workloads with unpredictable or spiky storage growth
• Supported across all RDS engines

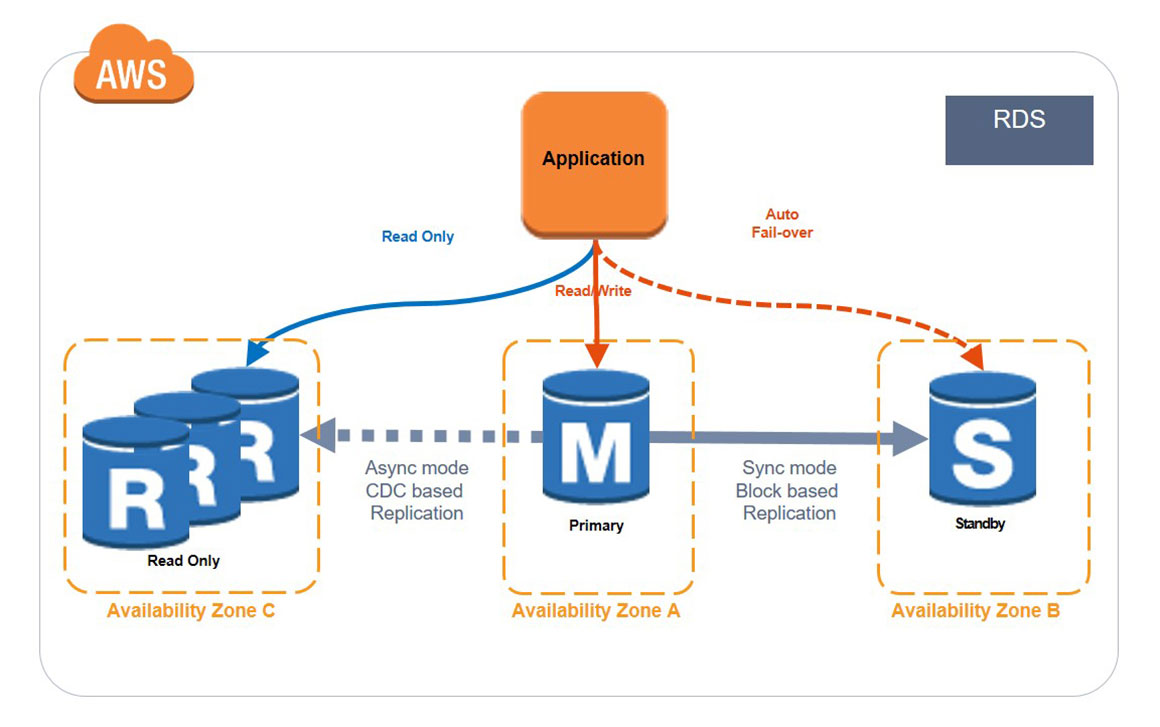

RDS Read Replicas #

• Supports up to 15 Read Replicas
• Replicas can be created within the same AZ, across AZs, or across Regions
• Replication is ASYNC, so read replicas are eventually consistent
• A read replica can be promoted to a standalone primary database (i.e., becomes its own read/write DB instance)
• Applications must update their connection strings to make use of read replicas

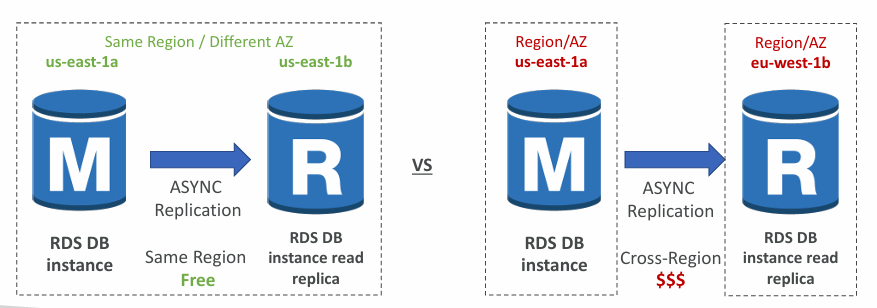

ℹ️ In AWS you normally pay for data transferred between AZs, but RDS Read Replicas within the same region avoid that cross‑AZ data transfer cost.

RDS Read Replica promotion #

RDS Multi AZ (Disaster Recovery) #

RDS Multi‑AZ provides synchronous replication to a standby in another AZ, uses a single DNS endpoint for automatic failover, boosts availability during AZ, network, instance, or storage failures, requires no application changes, and is designed for high availability rather than scaling; additionally, Read Replicas themselves can be configured as Multi‑AZ for disaster‑recovery purposes.

You can switch an RDS instance from Single‑AZ to Multi‑AZ with zero downtime by modifying the database configuration, no restart required.

More info: Amazon RDS multi-AZ

RDS Backups #

• Automated backups:
  • Daily full backup of the database (during the backup window)
  • Transaction logs are backed-up by RDS every 5 minutes
  • Ability to restore to any point in time (from oldest backup to 5 minutes ago)
  • 1 to 35 days of retention, set 0 to disable automated backups
• Manual DB Snapshots:
  • Manually triggered by the user
  • Retention of backup set by the user

ℹ️ Restoring a RDS / Aurora backup or a snapshot creates a new database.

• Restoring MySQL RDS database from S3
  • Create a backup of your on-premises database
  • Store it on Amazon S3 (object storage)
  • Restore the backup file onto a new RDS instance running MySQL

More info: RDS Backups

Aurora #

🏅 Cloud Practitioner-level: Amazon Aurora

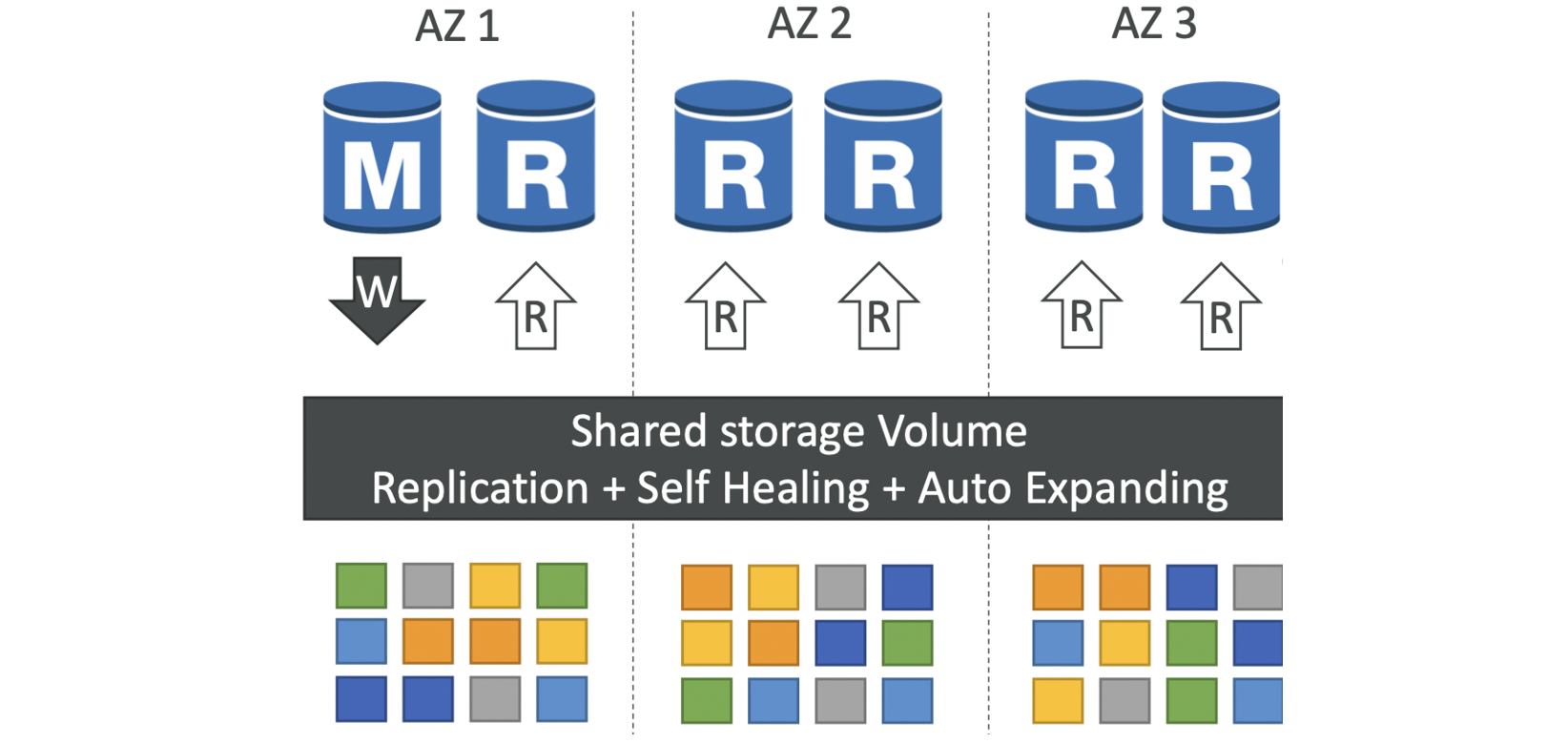

High Availability and Read Scaling #

Aurora keeps six copies of your data across three AZs, needing 4 copies for writes and 3 for reads, uses self‑healing, peer‑to‑peer replication, and stripes storage across hundreds of volumes. A single Aurora writer handles writes, failover to a new writer happens in under 30 seconds, up to 15 read replicas can serve reads, and cross‑region replication is supported.

More info: High availability for Amazon Aurora

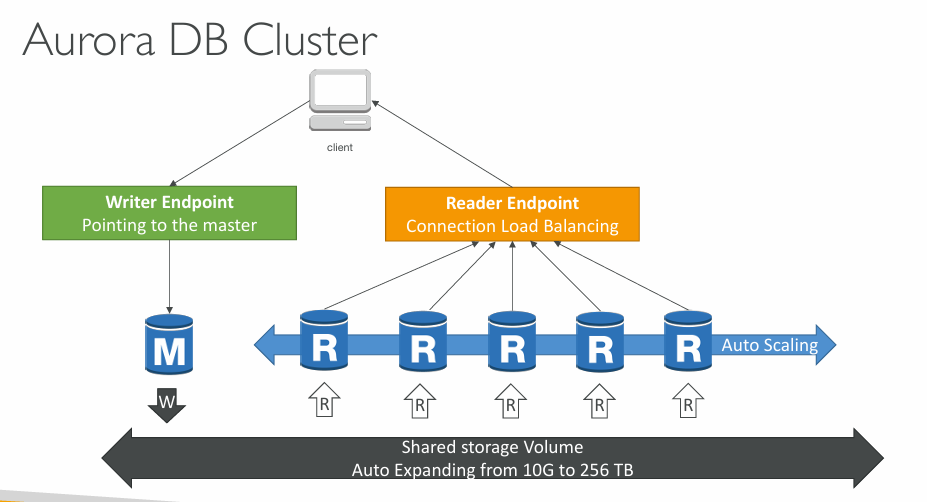

Aurora DB Cluster #

Features of Aurora #

• Automatic fail-over
• Backup and Recovery
• Isolation and security
• Industry compliance
• Push-button scaling
• Automated Patching with Zero Downtime
• Advanced Monitoring
• Routine Maintenance
• Backtrack: restore data at any point of time without using backups

More info: Amazon Aurora features

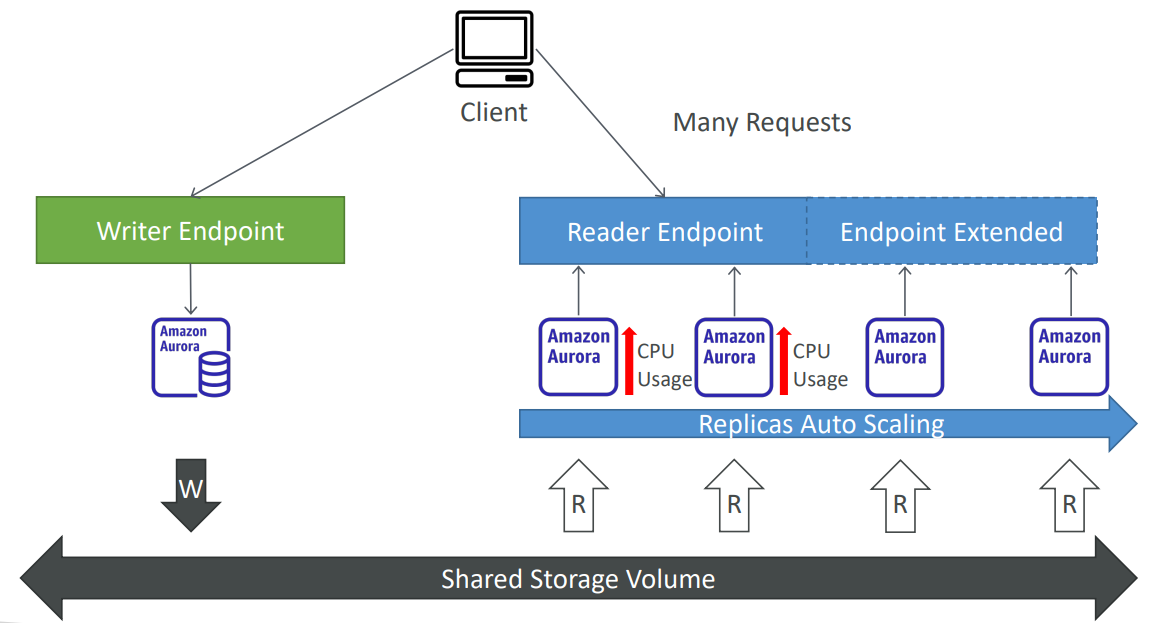

Aurora Replicas - Auto Scaling #

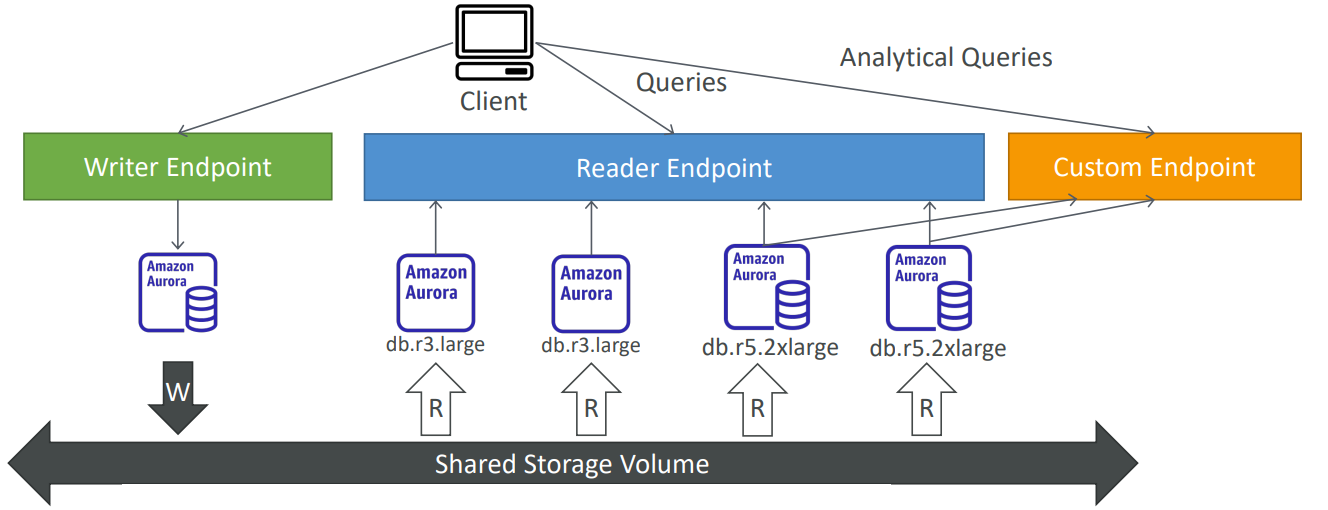

Aurora - Custom Endpoints #

• Define a subset of Aurora Instances as a Custom Endpoint
• Example: Run analytical queries on specific replicas
• The Reader Endpoint is generally not used after defining Custom Endpoints

Aurora Serverless #

• Automated database instantiation and auto scaling based on actual usage
• Good for infrequent, intermittent or unpredictable workloads
• No capacity planning needed
• Pay per second, can be more cost-effective

More info: Using Aurora serverless

Global Aurora #

An Aurora global database consists of one primary AWS Region where your data is written, and up to 10 read-only secondary AWS Regions.

• Promoting another region (for disaster recovery) has an RTO of < 1 minute
• Typical cross-region replication takes less than 1 second

More info: Using Amazon Aurora Global Database

Aurora Machine Learning #

Aurora Machine Learning lets you embed ML‑powered predictions directly into SQL queries, providing a simple and secure integration with AWS ML services like SageMaker (any model) and Comprehend (sentiment analysis), enabling use cases such as:

• fraud detection
• targeted ads
• sentiment analysis
• product recommendations

Aurora Backups #

• Automated backups
  • 1 to 35 days (cannot be disabled)
  • point-in-time recovery in that timeframe
• Manual DB Snapshots
  • Manually triggered by the user
  • Retention of backup for set by the user

ℹ️ Restoring a RDS / Aurora backup or a snapshot creates a new database.

• Restoring MySQL Aurora cluster from S3
  • Create a backup of your on-premises database using Percona XtraBackup
  • Store the backup file on Amazon S3
  • Restore the backup file onto a new Aurora cluster running MySQL

More info: Overview of backing up and restoring an Aurora DB cluster

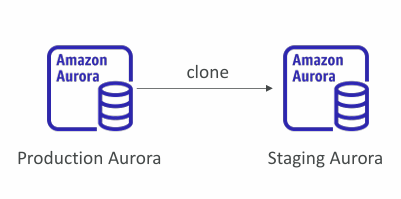

Aurora Database Cloning #

• Create a new Aurora DB Cluster from an existing one
• Faster than snapshot & restore
• Very fast & cost-effective

Useful to create a “staging” database from a “production” database without impacting the production database.

RDS & Aurora Security #

• At-rest encryption:
  • Database master & replicas encryption using AWS KMS - must be defined at launch time
  • If the master is not encrypted, the read replicas cannot be encrypted
  • To encrypt an un-encrypted database, go through a DB snapshot & restore as encrypted
• In-flight encryption: TLS-ready by default, use the AWS TLS root certificates client-side
• IAM Authentication: IAM roles to connect to your database (instead of username/pw)
• Security Groups: Control Network access to your RDS / Aurora DB
• No SSH available except on RDS Custom
• Audit Logs can be enabled and sent to CloudWatch Logs for longer retention

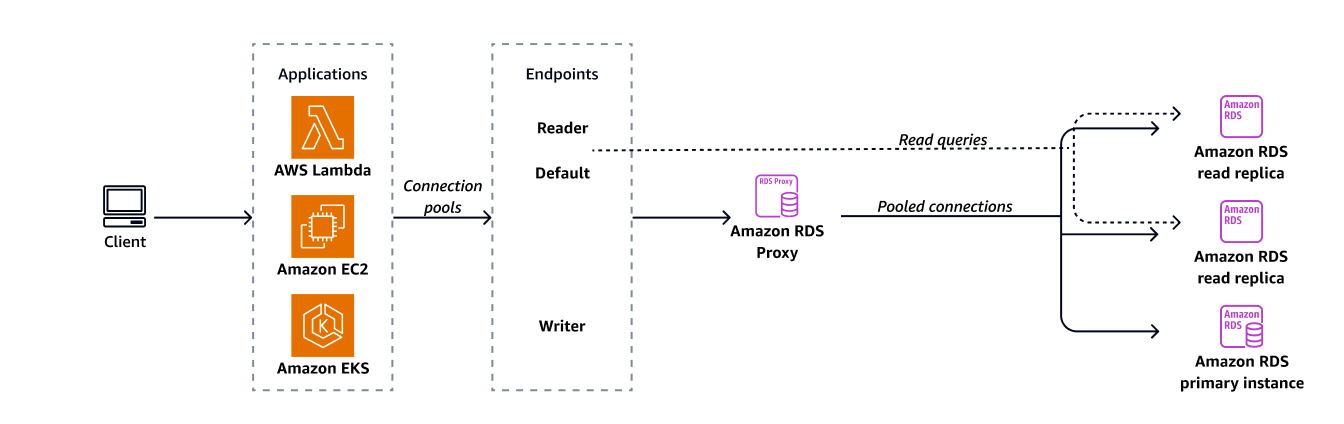

Amazon RDS Proxy #

• Fully managed database proxy for RDS
• Pools and shares DB connections to reduce load on database resources
• Improves efficiency by lowering CPU/RAM pressure and avoiding excessive open connections
• Serverless, autoscaling, and Multi‑AZ for high availability
• Cuts RDS/Aurora failover time by up to 66%
• Supports RDS (MySQL, PostgreSQL, MariaDB, SQL Server) and Aurora (MySQL, PostgreSQL)
• Works with most applications without code changes
• Enforces IAM authentication and stores credentials in Secrets Manager
• Never publicly accessible - must be accessed from within a VPC

How RDS Proxy behaves with Aurora #

Aurora has:

• a cluster endpoint (always points to the writer)
• reader endpoint (load balances readers)
• automatic failover
• automatic replica promotion

RDS Proxy integrates tightly with this:

• When Aurora promotes a reader → cluster endpoint updates
• RDS Proxy automatically follows the new writer
• No manual changes needed

Result:

Aurora + RDS Proxy = fully automatic failover.

How RDS Proxy behaves with RDS #

RDS (non‑Aurora) has:

• Multi‑AZ failover only
• No automatic promotion of read replicas
• Each instance has its own endpoint

RDS Proxy integrates only with Multi‑AZ failover, not with read replicas.

• If the RDS primary fails → Multi‑AZ standby becomes primary → same writer endpoint → RDS Proxy follows automatically
• If you promote a read replica → it becomes a separate, standalone DB → new endpoint → RDS Proxy does not follow it

Result:

RDS + RDS Proxy = automatic failover only for Multi‑AZ, not for read replica promotion.

More info: Amazon RDS Proxy

ElastiCache #

🏅 Cloud Practitioner-level: ElastiCache

More info:

• Amazon ElastiCache
• Amazon ElastiCache Documentation

• The same way RDS is to get managed Relational Databases…
• ElastiCache is to get managed Redis or Memcached
• Caches are in-memory databases with really high performance, low latency
• Helps reduce load off of databases for read intensive workloads
• Helps make your application stateless
• AWS takes care of OS maintenance / patching, optimizations, setup, configuration, monitoring, failure recovery and backups

ℹ️ Note: Using ElastiCache involves heavy application code changes.

DB Cache #

• Applications queries ElastiCache, if not available, get from RDS and store in ElastiCache
• Helps relieve load in RDS
• Cache must have an invalidation strategy to make sure only the most current data is used in there.

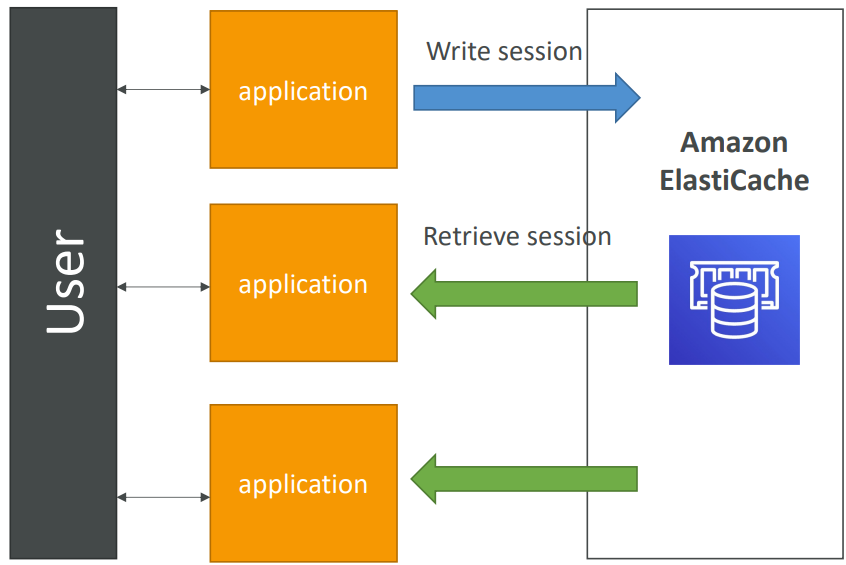

User Session Store #

• User logs into any of the application
• The application writes the session data into ElastiCache
• The user hits another instance of our application
• The instance retrieves the data and the user is already logged in

Redis vs Memcached #

Patterns #

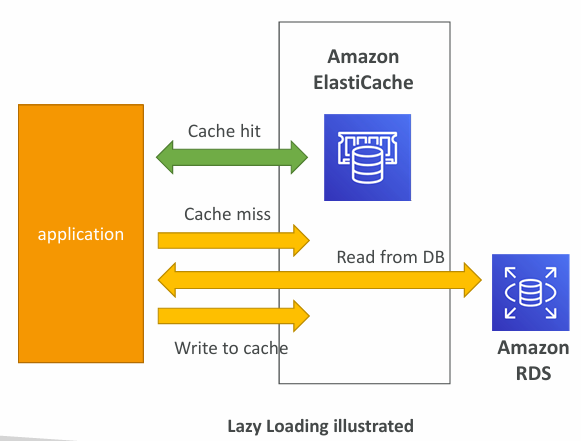

• Lazy Loading: all the read data is cached, data can become stale in cache
• Write Through: Adds or update data in the cache when written to a DB (no stale data)
• Session Store: store temporary session data in a cache (using TTL features)

There are only two hard things in Computer Science: cache invalidation and naming things.
