Solutions Architect: Databases in AWS

🔥 Associate‑level extension of the Databases section from the AWS Cloud Practitioner series.

Choosing the right Database #

• AWS offers many managed databases, so the choice depends on your workload and architecture
• Key questions to guide selection:
  • Is the workload read‑heavy, write‑heavy, or mixed? Does throughput need to scale or vary during the day
  • How much data will you store, how fast will it grow, and how will it be accessed
  • What level of durability and “source of truth” guarantees do you need
  • Required latency and expected concurrency
  • What data model fits: structured, semi‑structured, joins, query patterns
  • Do you need a strict schema or flexibility? Reporting? Search? RDBMS vs NoSQL
  • Any licensing costs to consider, or opportunities to move to cloud‑native engines like Aurora

Database Types #

• RDBMS / OLTP (SQL): RDS, Aurora - best when you need joins

Example join query:

SELECT users.name, orders.amount
FROM users
JOIN orders ON users.user_id = orders.user_id;

Result:

• NoSQL: DynamoDB (JSON‑style), ElastiCache (key/value), Neptune (graph), DocumentDB (MongoDB‑compatible), Keyspaces (Cassandra)
• Object Storage: S3 for large objects, Glacier for archival
• Data Warehousing / Analytics: Redshift (OLAP), Athena, EMR
• Search: OpenSearch for free‑text and unstructured queries
• Graph: Neptune for relationship‑focused data
• Ledger: QLDB for immutable, cryptographically verifiable records
• Time Series: Timestream for time‑stamped data

Amazon RDS - Summary #

🏅 Cloud Practitioner-level: Amazon RDS
🏅 Solutions Architect Associate level extension: Amazon RDS

• Fully managed relational databases: PostgreSQL, MySQL, MariaDB, Oracle, SQL Server, DB2, plus RDS Custom for deeper OS/instance access
• You choose instance size and EBS volume type/size, with storage auto‑scaling
• Supports Read Replicas and Multi‑AZ for availability and read scaling
• Security via IAM, Security Groups, KMS encryption, and SSL
• Automated backups with PITR (up to 35 days), plus manual snapshots for long‑term retention
• Includes managed maintenance (with downtime)
• Supports IAM authentication and integrates with Secrets Manager
• Ideal for relational/OLTP workloads needing SQL queries and transactions

Amazon Aurora - Summary #

🏅 Cloud Practitioner-level: Amazon Aurora
🏅 Solutions Architect Associate level extension: Amazon Aurora

• MySQL/PostgreSQL‑compatible engine with separate compute and distributed storage
• Storage keeps 6 copies across 3 AZs, auto‑scales, self‑heals; compute scales via multi‑AZ clusters and read replicas
• Cluster endpoints for writer and readers
• Shares RDS features for security, monitoring, and maintenance
• Supports PITR, snapshots, fast database cloning, and S3 import/export
• Aurora Serverless handles spiky or unpredictable workloads with no capacity planning
• Aurora Global offers low‑latency global reads with sub‑second replication
• Aurora ML integrates with SageMaker and Comprehend for in‑database ML inference
• Best for RDS‑style workloads needing higher performance, more automation, and richer features

Amazon ElastiCache - Summary #

🏅 Solutions Architect Associate level extension: Elasticache

• Fully managed Redis/Memcached service (similar to RDS but for caching)
• In‑memory store with sub‑millisecond latency
• Choose from cache‑optimised instance types
• Supports Redis clustering, Multi‑AZ, and read replicas (sharding)
• Security via IAM, Security Groups, KMS, and Redis Auth
• Offers backups, snapshots, and PITR
• Includes managed maintenance
• Requires app‑level changes to use effectively
• Ideal for key/value workloads, heavy‑read patterns, DB query caching, and session storage (no SQL)

ℹ️ Note: Using ElastiCache involves heavy application code changes.

DynamoDB - Summary #

🏅 Solutions Architect Associate level extension: DynamoDB

• Fully managed, serverless NoSQL database with consistent millisecond latency
• Supports provisioned (with auto‑scaling) and on‑demand capacity modes
• Can act as a key/value store (e.g., session data) with TTL
• Highly available, Multi‑AZ by default; supports transactions and decoupled read/write paths
• DAX adds microsecond‑latency read caching
• Security, auth, and access control handled entirely through IAM
• DynamoDB Streams enable event‑driven processing via Lambda or Kinesis
• Global Tables provide active‑active multi‑region replication
• Backups: PITR (35 days) and on‑demand snapshots; restores create a new table
• Export to S3 (no RCUs) and import from S3 (no WCUs)
• Flexible schema evolution
• Ideal for serverless apps, small JSON‑like documents, and distributed low‑latency caching

Amazon S3 - Summary #

• S3 is a key/value object store, ideal for large objects (less efficient for many tiny files)
• Fully serverless, infinitely scalable, supports versioning; max object size 50 TB
• Storage tiers: Standard, Infrequent Access, Intelligent‑Tiering, Glacier (with lifecycle policies)
• Core features: versioning, encryption, replication, MFA‑Delete, access logs
• Security via IAM, bucket policies, ACLs, Access Points, Object Lambda, CORS, Object/Vault Lock
• Encryption options: SSE‑S3, SSE‑KMS, SSE‑C, client‑side, TLS, default encryption
• Bulk operations with S3 Batch, inventory reports for listing
• Performance tools: multipart upload, Transfer Acceleration, S3 Select
• Event automation via SNS, SQS, Lambda, EventBridge
• Use cases: static hosting, large object storage, scalable key/value storage

DocumentDB #

• AWS’s managed, MongoDB‑compatible NoSQL database for storing and querying JSON
• Similar deployment model to Aurora, but for MongoDB workloads
• Fully managed, highly available with replication across 3 AZs
• Storage auto‑expands in 10 GB increments
• Designed to scale to millions of requests per second

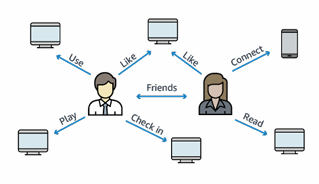

Amazon Neptune #

• Fully managed graph database for highly connected datasets
• Ideal for social‑network‑style relationships (users, posts, comments, likes, shares)
• Replicated across 3 AZs with up to 15 read replicas
• Handles billions of relationships with millisecond‑level query latency
• Optimised for complex graph queries that are hard for relational/NoSQL systems
• Great for knowledge graphs, fraud detection, recommendation engines, and social networks

Amazon Neptune - Streams #

• Provides a real‑time, strictly ordered feed of all graph data changes
• Updates appear immediately with no duplicates
• Stream data is accessible via an HTTP REST API
• Use cases:
  • Trigger notifications on specific graph changes
  • Keep another data store (S3, OpenSearch, ElastiCache, etc.) in sync
  • Support cross‑region Neptune replication

Amazon Keyspaces (for Apache Cassandra) #

• Fully managed, serverless, Cassandra‑compatible NoSQL database
• Automatically scales up/down with traffic; highly available with 3× replication across AZs
• Uses CQL and delivers single‑digit millisecond latency at massive scale
• Supports on‑demand or provisioned capacity (with auto‑scaling)
• Provides encryption, backups, and PITR (Point-In-Time Recovery) up to 35 days
• Great for IoT data, time‑series workloads, and large‑scale distributed apps

Amazon Timestream #

• Fully managed, serverless time‑series database that auto‑scales with demand
• Handles trillions of events per day, delivering far lower cost and much faster performance than relational DBs
• Supports scheduled queries, multi‑measure records, and SQL‑compatible querying
• Tiered storage: recent data in memory, historical data in cost‑optimised storage
• Built‑in time‑series analytics for near real‑time pattern detection
• Encrypted in transit and at rest
• Ideal for IoT, operational monitoring, and real‑time analytics

Data & Analytics #

Amazon Athena #

• Serverless SQL query engine for data stored in S3 (built on Presto)
• Supports formats like CSV, JSON, ORC, Avro, Parquet
• Pricing: $5 per TB scanned
• Often paired with QuickSight for dashboards and reporting
• Great for analytics on logs such as VPC Flow Logs, ELB logs, CloudTrail
• Exam tip: use Athena to run serverless SQL queries directly on S3

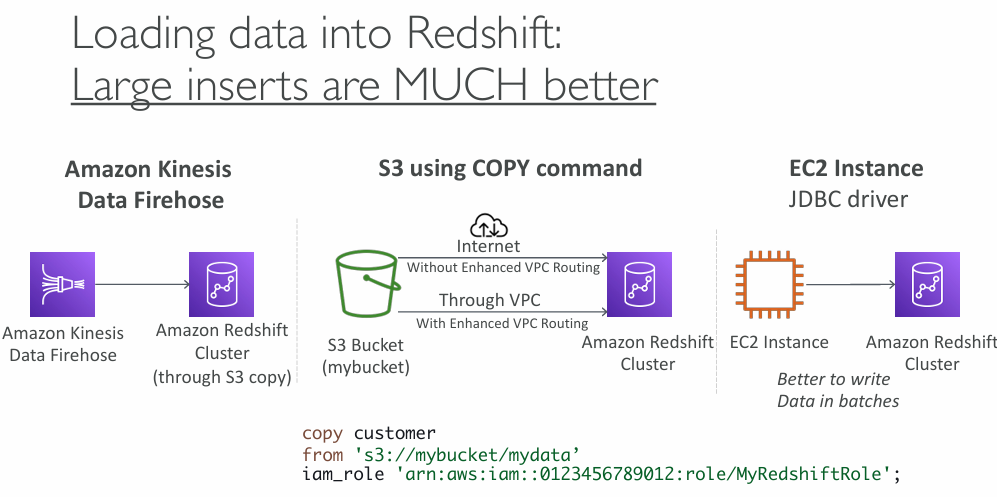

Redshift #

• Analytics‑focused OLAP data warehouse (PostgreSQL‑based but not for OLTP)
• Delivers 10× faster performance than traditional warehouses and scales to petabytes
• Uses columnar storage and a massively parallel query engine
• Available as provisioned or serverless
• Queried using standard SQL; integrates with BI tools like QuickSight and Tableau
• Compared to Athena: faster for complex joins and aggregations due to indexing

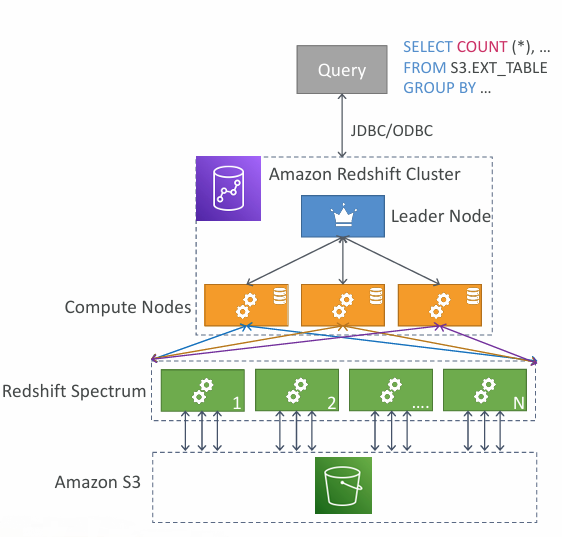

Redshift Spectrum #

• Lets you query data directly in S3 without loading it into Redshift
• Requires an active Redshift cluster to run the query
• Queries are executed by thousands of Spectrum nodes for large‑scale parallel processing

Amazon OpenSearch Service #

• Successor to Amazon Elasticsearch, offering full‑text and partial‑match search across any field
• Complements other databases (e.g., DynamoDB) by enabling rich search beyond key/index lookups
• Available as managed or serverless clusters
• SQL support is optional via a plugin
• Ingests data from Kinesis Firehose, AWS IoT, and CloudWatch Logs
• Security via Cognito, IAM, KMS encryption, and TLS
• Includes OpenSearch Dashboards for visualisation

Amazon EMR #

• Managed Hadoop/Spark platform for large‑scale data processing
• Spins up clusters of hundreds of EC2 instances for big data workloads
• Bundles tools like Spark, HBase, Presto, Flink
• Handles provisioning, configuration, and auto‑scaling; supports Spot Instances
• Ideal for ETL, machine learning, log processing, web indexing, and other big‑data pipelines

Amazon QuickSight #

• Serverless, ML‑powered Business Intelligence service for building interactive dashboards
• Fast, auto‑scaling, embeddable, with per‑session pricing
• Use cases: business analytics, visualisations, ad‑hoc analysis, data insights
• Integrates with RDS, Aurora, Athena, Redshift, S3, and more
• Can use the in‑memory SPICE engine for high‑speed querying
• Enterprise edition adds Column‑Level Security (CLS)

AWS Glue #

• Fully managed, serverless ETL service for preparing and transforming data
• Automates data discovery, cleaning, and schema handling for analytics
• Ideal for building scalable, code‑optional ETL pipelines

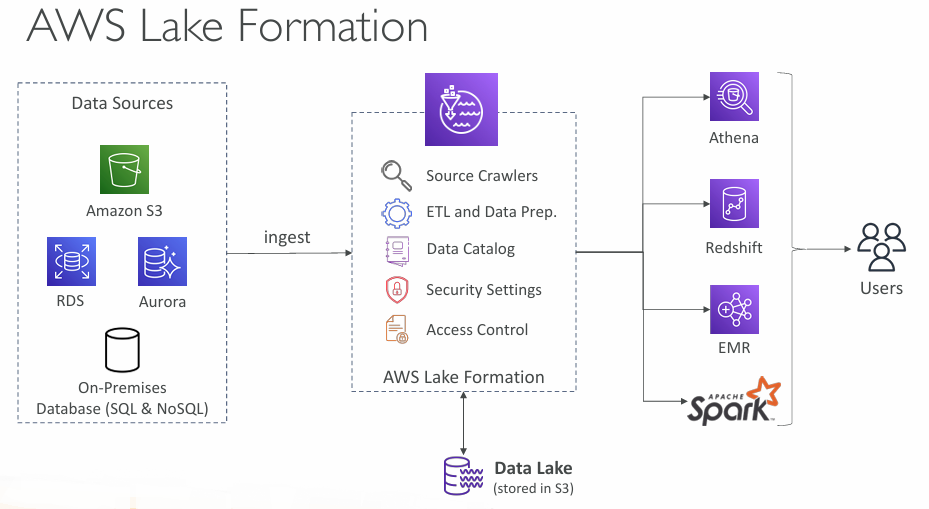

AWS Lake Formation #

• Fully managed service for quickly building a centralised data lake
• Automates data discovery, cleansing, transformation, ingestion, and cataloging (with ML‑based de‑duplication)
• Supports combining structured and unstructured data
• Provides fine‑grained row/column‑level access control
• Includes blueprints for common sources (S3, RDS, relational/NoSQL DBs)
• Built on top of AWS Glue

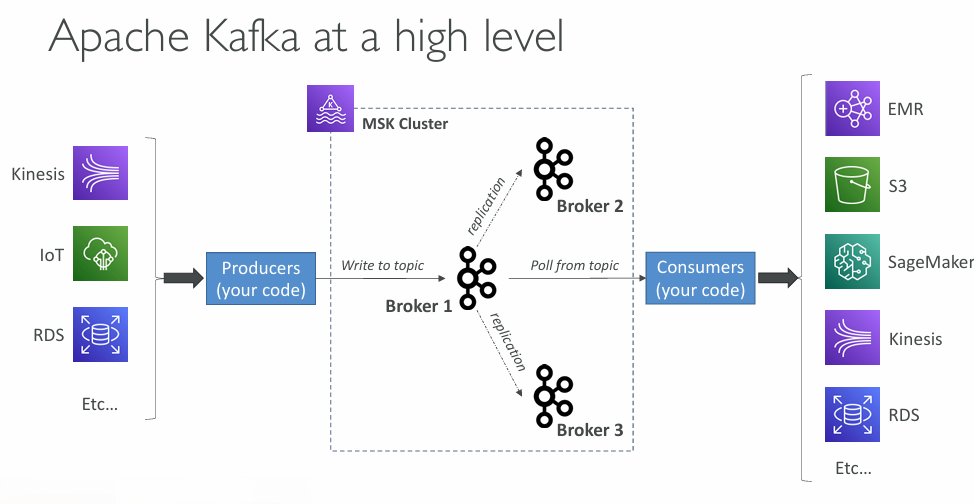

Amazon Managed Streaming for Apache Kafka (Amazon MSK) #

• Fully managed Apache Kafka service on AWS; alternative to Kinesis
• AWS handles broker and ZooKeeper provisioning, updates, and recovery
• Deploys in your VPC, supports multi‑AZ (up to 3) for high availability
• Data stored durably on EBS for as long as needed
• MSK Serverless: Kafka without capacity management—compute and storage scale automatically

» Sources « #

• AWS Databases

  • Amazon RDS
  • Amazon Aurora
  • Amazon ElastiCache
  • DynamoDB
  • Amazon S3
    • S3 - Cloud Practitioner
    • S3 - Solutions Architect
  • DocumentDB
  • Amazon Neptune
  • Amazon Keyspaces (for Apache Cassandra)
  • Amazon Timestream

• Amazon Athena

• Redshift

• Amazon OpenSearch Service

• Amazon EMR

• Amazon QuickSight

• AWS Glue

• Amazon MSK

» References « #

Cloud Practitioner:

• Databases
• S3 - Cloud Practitioner

Solutions Architect:

• RDS, Aurora, Elasticache
• S3 - Solutions Architect
