Solutions Architect: VPC

ℹ️ Associate‑level extension of the VPC section from the AWS Cloud Practitioner series.

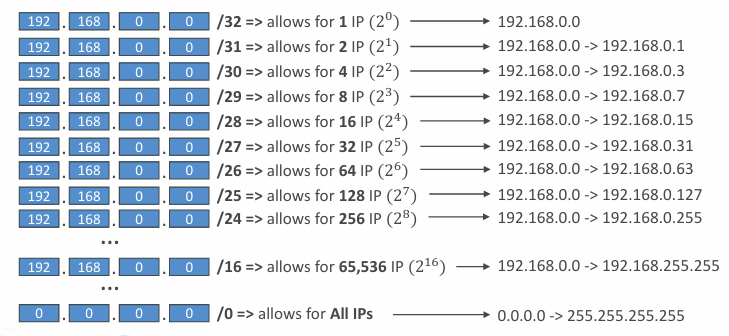

CIDR #

A CIDR consists of two components:

• Base IP

  • Represents an IP contained in the range (XX.XX.XX.XX)
  • Example: 10.0.0.0, 192.168.0.0, …

• Subnet Mask

  • Defines how many bits can change in the IP
  • Example: /0, /24, /32
  • Can take two forms:
    • /8 => 255.0.0.0
    • /16 => 255.255.0.0
    • /24 => 255.255.255.0
    • /32 => 255.255.255.255

More info: IPAddressGuide

Public vs. Private IP (IPv4) #

Private IP addresses must fall within one of these ranges:

• 10.0.0.0 - 10.255.255.255 (10.0.0.0/8) - typically used in large networks
• 172.16.0.0 - 172.31.255.255 is the full private IP range defined by RFC1918 (CIDR 172.16.0.0/12)
  • AWS default VPCs use a single /16 block inside that range, specifically 172.31.0.0/16
• 192.168.0.0 - 192.168.255.255 (192.168.0.0/16) - common in home and small office networks

All the rest of the IP addresses on the Internet are Public.

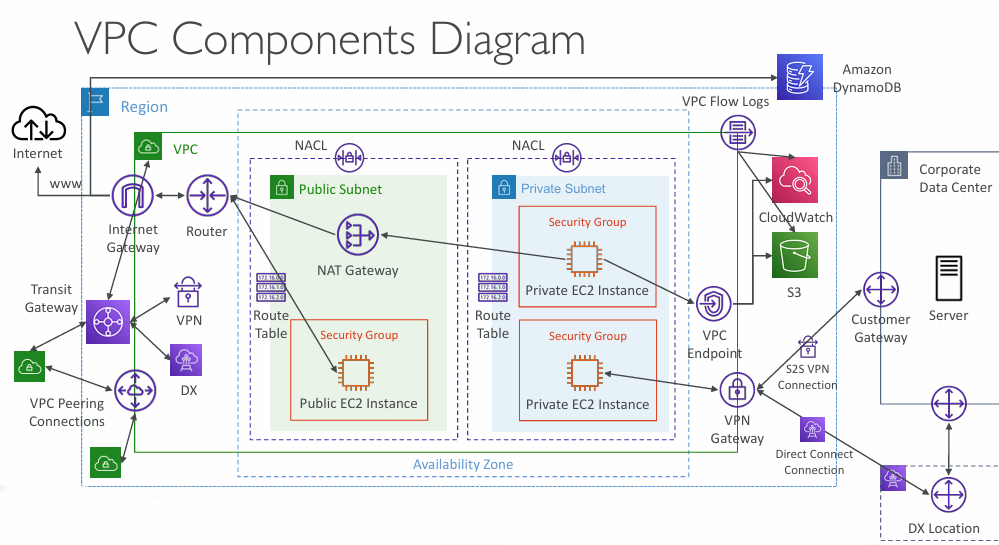

VPC in AWS (IPv4) #

• A VPC (Virtual Private Cloud) is your isolated network environment in AWS

• You can create multiple VPCs per region (default soft limit: 5)

• Each VPC can have up to 5 CIDR blocks, and each CIDR must be between:

  • /28 (16 IP addresses)
  • /16 (65,536 IP addresses)

• VPCs must use private IPv4 ranges only:

  • 10.0.0.0/8
  • 172.16.0.0/12
  • 192.168.0.0/16

Your VPC CIDR should not overlap with any existing networks (e.g., corporate on‑prem) to avoid routing conflicts.

VPC - Subnet (IPv4) #

• AWS reserves 5 IP addresses in every subnet (the first four and the last one)
• These addresses cannot be assigned to EC2 instances
• For a subnet like 10.0.0.0/24, the reserved IPs are:
  • 10.0.0.0 - network address
  • 10.0.0.1 - AWS VPC router
  • 10.0.0.2 - AWS‑provided DNS mapping
  • 10.0.0.3 - reserved for future AWS use
  • 10.0.0.255 - broadcast address (broadcasting isn’t supported in VPCs, so it’s reserved)

Internet Gateway (IGW) #

More info:

• Building AWS VPC
• Add internet access to a subnet
• Enable internet access for a VPC using an internet gateway

• An Internet Gateway enables resources in a VPC (such as EC2 instances) to reach the public Internet
• It is fully managed, horizontally scalable, and highly available
• It must be created separately and then attached to a VPC
• A VPC can have only one Internet Gateway attached, and an Internet Gateway can attach to only one VPC
• The IGW alone does not provide Internet access - you must also update the route tables to send traffic to it

NAT Gateway #

More info: NAT gateways

• Fully managed AWS NAT service with high bandwidth, high availability, and no admin overhead
• Billed by the hour plus data processing charges
• Deployed in a specific Availability Zone and associated with an Elastic IP
• Cannot be used by instances in the same subnet - only by instances in other subnets
• Requires an Internet Gateway for outbound traffic (Private Subnet → NAT Gateway → IGW)
• Provides 5 Gbps baseline throughput and automatically scales up to 100 Gbps
• No Security Groups are needed or supported for NAT Gateways

ℹ️ Note: NAT Gateway is resilient within a single Availability Zone. Must create multiple NAT Gateways in multiple AZs for fault tolerance.

Regional NAT Gateway (RNAT) #

• Provides a highly available, VPC‑wide NAT service
• RNAT uses its own dedicated route tables
• Removes the need to deploy NAT Gateways in every Availability Zone - it is shared across all AZs
• You don’t need public subnets in your VPC to host RNAT
• Automatically detects when new AZs become available and extends coverage to them

Security Groups & NACLs #

More info:

• Managing security responsibilities for Amazon Virtual Private Cloud
  • Control traffic to your AWS resources using security groups
  • Control subnet traffic with network access control lists

Network Access Control List (NACL) #

• A Network ACL acts as a subnet‑level firewall that controls inbound and outbound traffic.
• Each subnet is associated with a single NACL, and new subnets inherit the default NACL unless changed.
• NACL rules are numbered 1–32766, and the rule with the lowest number that matches the traffic determines the outcome.
• Example: rule #100 ALLOW and rule #200 DENY for the same IP means the traffic is allowed because rule 100 takes precedence.
• Any traffic that doesn’t match a rule hits the final “” deny* entry.
• AWS recommends spacing rule numbers in increments of 100 for easier management.
• Newly created NACLs start with deny‑all rules.
• NACLs are useful for blocking specific IP addresses at the subnet boundary.

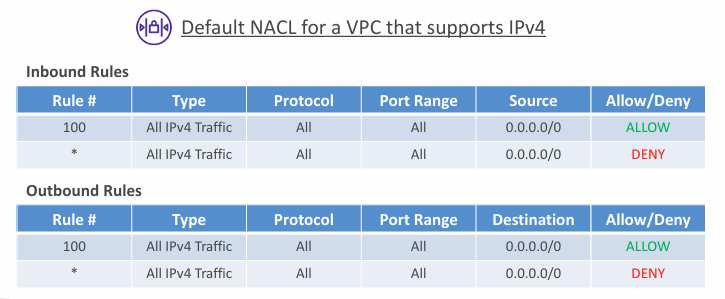

Default NACL #

• Accepts everything inbound/outbound with the subnets it’s associated with
• Do NOT modify the Default NACL, instead create custom NACLs

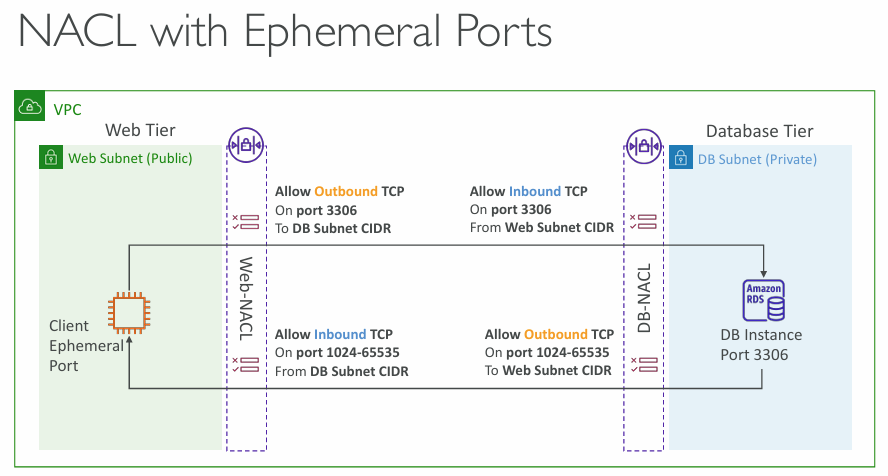

Ephemeral Ports #

• Every connection between two endpoints requires ports, and while clients connect to a server’s well‑known port, the server replies back using an ephemeral (temporary) port.
• Different operating systems allocate ephemeral ports from different ranges - for example, 49152-65535 on IANA and Windows 10, and 32768-60999 on many Linux kernels.

Security Group vs. NACLs #

More info: Control subnet traffic with network access control lists

VPC Peering #

• VPC Peering lets you privately connect two VPCs over the AWS internal network so they can communicate as if they were part of the same environment.
• The VPCs must have non‑overlapping CIDR ranges.
• Peering is not transitive - every pair of VPCs that needs to talk must have its own peering connection.
  • You must update the route tables in each VPC’s subnets so that EC2 instances can reach each other through the peering link.

More info: What is VPC peering?

VPC Endpoints #

Interface Endpoints (most common) #

• Powered by ENIs (Elastic Network Interfaces) in your subnets
• Provide private IPs to reach AWS services like SSM, Secrets Manager, API Gateway, STS, CloudWatch, etc.
• Support Security Groups
• You pay per hour + data processed

Think of them as: “Private ENIs that act as a doorway to an AWS service.”

More info: Access an AWS service using an interface VPC endpoint

Gateway Endpoints #

• Only for S3 and DynamoDB
• Added to your route tables
• Free to use
• No ENIs, no Security Groups

Think of them as: “Route‑table entries that send traffic to S3/DynamoDB privately.”

More info: Gateway endpoints

Why VPC Endpoints matter #

• No Internet exposure
• No NAT Gateway cost for S3/DynamoDB traffic
• Lower latency (stays on AWS backbone)
• Better security posture (private connectivity, IAM policies, endpoint policies)

Lambda in VPC accessing DynamoDB #

• DynamoDB is a public AWS service, so a Lambda function inside a VPC must either reach it through the public Internet (which requires a NAT Gateway in a public subnet plus an Internet Gateway), or

• Use the better, private and free option: create a DynamoDB Gateway VPC Endpoint and update your route tables so the Lambda function can access DynamoDB entirely through the AWS private network.

VPC Flow Logs #

• VPC Flow Logs record IP traffic flowing into and out of your VPC, subnets, or individual ENIs.
• They’re useful for monitoring and diagnosing network connectivity issues.
• Flow log data can be sent to S3, CloudWatch Logs, or Kinesis Data Firehose.
• They also capture traffic from AWS‑managed network interfaces such as ELB, RDS, ElastiCache, Redshift, WorkSpaces, NAT Gateways, and Transit Gateways.

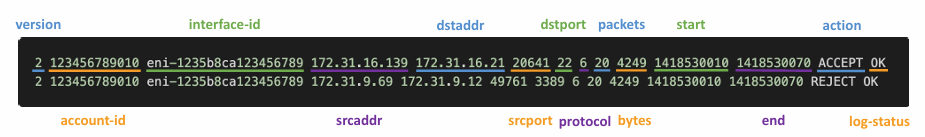

VPC Flow Logs Syntax #

• srcaddr & dstaddr - help identify problematic IP protocol
• srcport & dstport - help identity problematic ports bytes end
• Action - success or failure of the request due to Security Group / NACL
• Can be used for analytics on usage patterns, or malicious behavior
• Query VPC flow logs using Athena on S3 or CloudWatch Logs Insights

More info: Flow log record examples

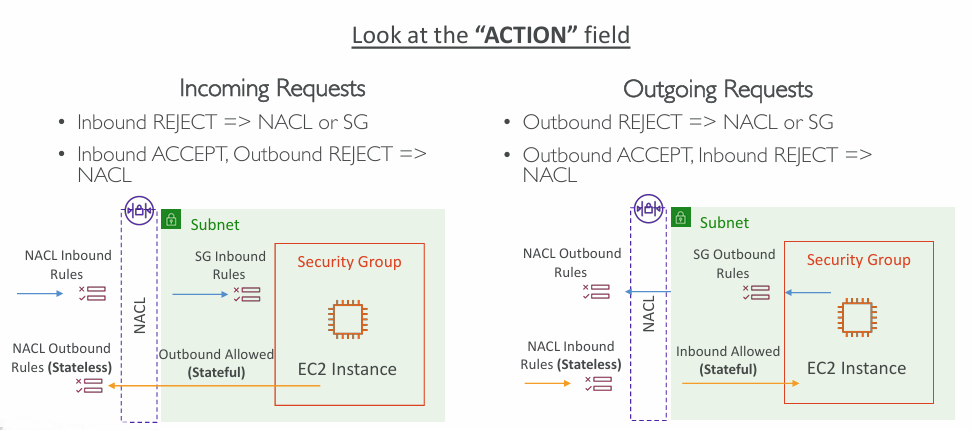

VPC Flow Logs - Troubleshoot SG & NACL issues #

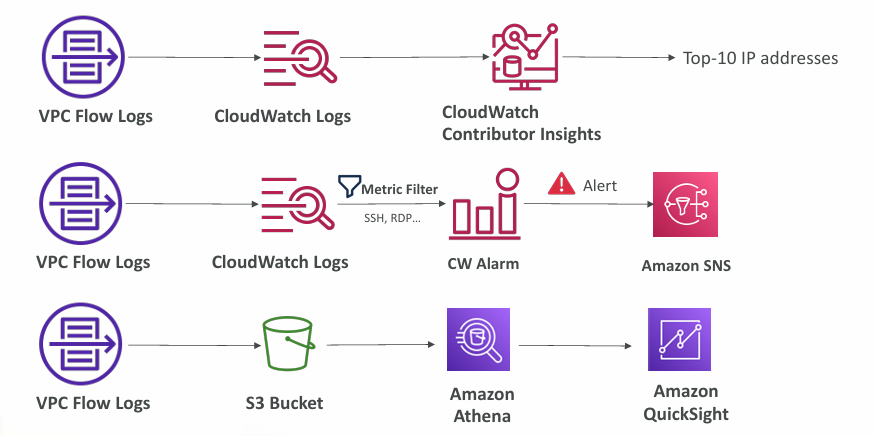

VPC Flow Logs - Architectures #

Site-to-Site VPN #

More info:

• AWS Virtual Private Network Documentation
• Get started with AWS Site-to-Site VPN

• A Customer Gateway (CGW) represents your on‑premises side and can be either a physical device or a software‑based VPN appliance.
• A Virtual Private Gateway (VGW) is the AWS‑side VPN concentrator; you create it and attach it to the VPC that will use the Site‑to‑Site VPN, and you can optionally set a custom ASN for routing.

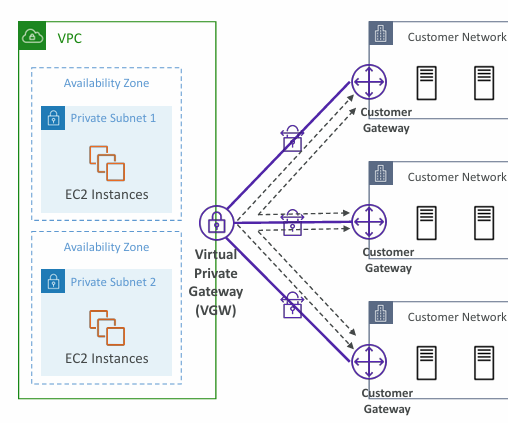

AWS VPN CloudHub #

• AWS VPN CloudHub lets you securely connect multiple remote sites using a hub‑and‑spoke VPN model, ideal for low‑cost primary or backup connectivity between locations.
• Because it’s still a VPN over the public Internet, you set it up by attaching multiple VPN connections to the same Virtual Private Gateway, enabling dynamic routing, and updating your route tables so all sites can communicate.

Direct Connect (DX) #

More info: What is Direct Connect?

• AWS Direct Connect gives you a dedicated, private network link from your on‑premises environment to your VPC.
• You establish a physical connection between your data centre and an AWS Direct Connect location.
• Your VPC still needs a Virtual Private Gateway to receive the connection.
• The same Direct Connect link can reach both public AWS services (like S3) and private VPC resources (like EC2).
• Common use cases include:
  • Higher, more predictable bandwidth for large data transfers at lower cost
  • Consistent, low‑latency connectivity for real‑time applications
  • Hybrid architectures spanning on‑prem and cloud
• Direct Connect supports both IPv4 and IPv6 traffic.

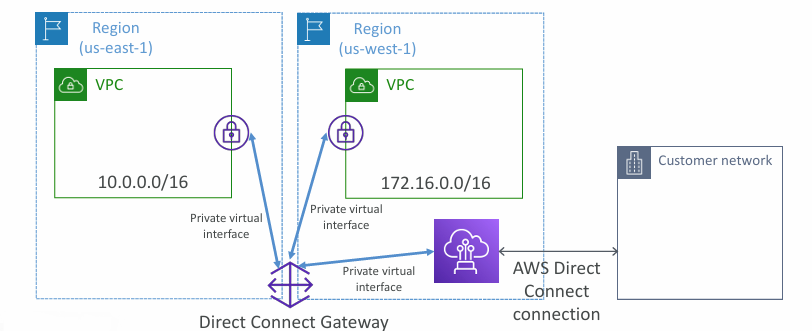

Direct Connect Gateway #

If you want to setup a Direct Connect to one or more VPC in many different regions (same account), you must use a Direct Connect Gateway.

Direct Connect - Connection Types #

• Dedicated Connections provide a physical, customer‑specific Ethernet port at speeds from 1 Gbps up to 400 Gbps. You request these through AWS, and an AWS Direct Connect Partner completes the provisioning.
• Hosted Connections are provisioned entirely through AWS Direct Connect Partners and range from 50 Mbps to 25 Gbps. They offer flexible, on‑demand capacity adjustments, though new connections often take over a month to be fully established.

Direct Connect - Encryption #

• Traffic sent over AWS Direct Connect is not encrypted by default, even though it travels over a private link.
• If you need encryption, you can layer a VPN (IPsec) tunnel on top of Direct Connect to create an encrypted private connection.
• This adds an extra layer of security, but also introduces a bit more setup complexity.

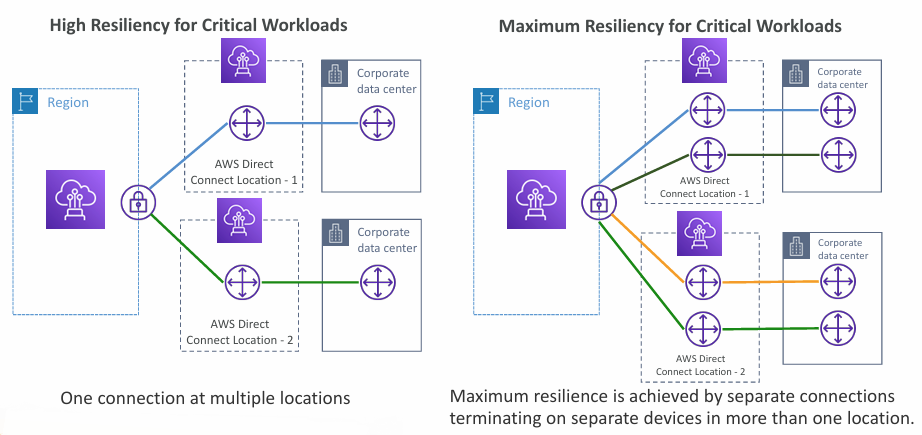

Direct Connect - Resiliency #

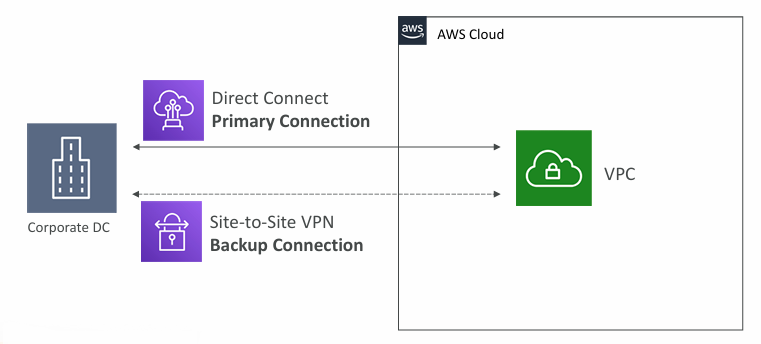

Site-to-Site VPN connection as a backup #

In case Direct Connect fails, you can set up a backup Direct Connect connection (expensive), or a Site-to-Site VPN connection.

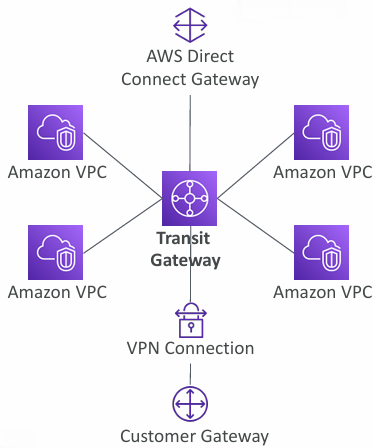

Transit Gateway #

More info: What is AWS Transit Gateway for Amazon VPC?

• Transit Gateway enables large‑scale, transitive connectivity across thousands of VPCs and on‑prem networks using a hub‑and‑spoke architecture.
• It’s a regional resource but can also be used across regions through inter‑region peering.
• You can share a Transit Gateway with other AWS accounts using Resource Access Manager (RAM).
• Transit Gateways themselves can be peered across regions for global architectures.
• Route tables on the TGW control which VPCs and networks are allowed to communicate.
• It integrates with Direct Connect Gateway and Site‑to‑Site VPN.
• It uniquely supports IP multicast, which no other AWS networking service provides.

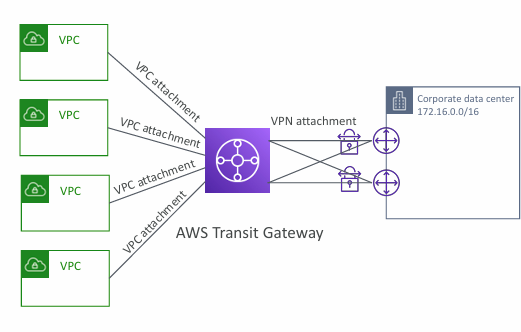

Transit Gateway - Site-to-Site VPN ECMP #

• Equal‑Cost Multi‑Path (ECMP) allows a Transit Gateway to send traffic across multiple routes that all have the same cost.
• This lets AWS load‑balance traffic across several VPN tunnels simultaneously.
• A common use case is creating multiple Site‑to‑Site VPN connections to AWS so you can increase total available bandwidth beyond what a single VPN tunnel can provide.

VPC - Traffic Mirroring #

• VPC Traffic Mirroring lets you capture and analyze network traffic inside your VPC.
• You can forward mirrored packets to your own security or monitoring appliances.
• Traffic can be mirrored from ENIs (sources) and sent to an ENI or a Network Load Balancer (targets).
• You can mirror all packets or only specific traffic, and optionally truncate packets to reduce volume.
• Sources and targets may be in the same VPC or in different VPCs connected through VPC Peering.
• Common use cases include deep packet inspection, threat detection, and network troubleshooting.

IPv6 #

• IPv4 was built to support about 4.3 billion addresses, and that pool is nearly exhausted.
• IPv6 is the next‑generation protocol designed to provide an almost limitless supply of addresses — roughly 3.4 × 10³⁸ unique IPs.
• In AWS, every IPv6 address is public and Internet‑routable; there is no private IPv6 range.

IPv6 in VPC #

• You can’t turn off IPv4 for a VPC or its subnets.
• You can enable IPv6 to run in dual‑stack mode, where IPv4 and IPv6 operate together.
• EC2 instances will receive a private IPv4 address and a public IPv6 address.
• They can reach the Internet over either protocol through an Internet Gateway.

Egress-only Internet Gateway #

• An egress‑only Internet Gateway is for IPv6 traffic only and works like a NAT Gateway but specifically for outbound IPv6.
• It lets instances make outbound IPv6 connections while blocking inbound IPv6 traffic from the Internet.
• You must update your route tables to use it.

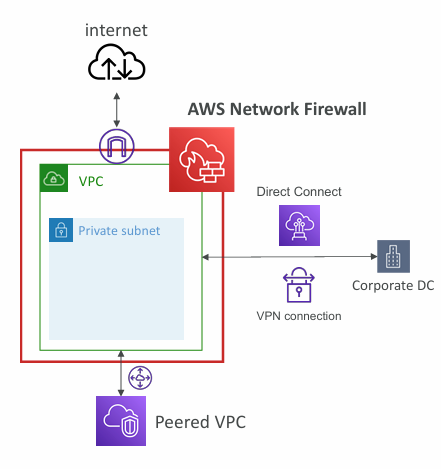

AWS Network Firewall #

More info: What is AWS Network Firewall?

• AWS Network Firewall provides full VPC‑level protection, covering traffic from Layer 3 through Layer 7.
• It can inspect traffic in any direction: VPC‑to‑VPC, outbound to the Internet, inbound from the Internet, and traffic to or from Direct Connect or Site‑to‑Site VPN.
• Internally, it relies on the AWS Gateway Load Balancer for scaling and availability.
• Rules can be centrally managed across accounts using AWS Firewall Manager, making it easy to enforce consistent policies across many VPCs.

• Supports thousands of rules, including large IP and port lists.
• Can filter by protocol, such as blocking SMB for outbound traffic.
• Offers stateful domain list rules to restrict outbound access (e.g., only *.mycorp.com or approved software repositories).
• Allows regex‑based pattern matching for advanced inspection.
• Traffic actions include allow, drop, or alert.
• Performs active flow inspection with intrusion‑prevention capabilities, fully managed by AWS.
• Can send detailed logs to S3, CloudWatch Logs, or Kinesis Data Firehose.

» Sources « #

IP Address Guide (CIDR): IPAddressGuide

VPC:

• What is Amazon VPC?
• Control subnet traffic with network access control lists
• Flow log record examples

IGW:

• Building AWS VPC
• Add internet access to a subnet
• Enable internet access for a VPC using an internet gateway

NATGW:

• NAT gateways

SG & NACL:

• Managing security responsibilities for Amazon Virtual Private Cloud
  • Control traffic to your AWS resources using security groups
  • Control subnet traffic with network access control lists

VPC Peering:

• What is VPC peering?

VPC Endpoints:

• Access an AWS service using an interface VPC endpoint
• Gateway endpoints

VPN & Direct Connect:

• AWS Virtual Private Network Documentation
• Get started with AWS Site-to-Site VPN
• What is Direct Connect?

Transit Gateway:

• What is AWS Transit Gateway for Amazon VPC?

AWS Network Firewall:

• What is AWS Network Firewall?

» References « #

Cloud Practitioner: VPC

• AWS Firewall Manager

» Disclaimer « #
