Terraform: Variables, Datasources and Output Values 🔥

Table of Contents

Terraform Input Variables #

Input Variables serve as parameters for a Terraform module allowing aspects of the module to be customized without altering the module’s source code and allowing modules to be shared between different configurations.

Basic Input Variables
Can be provided when prompted during terraform plan or terraform apply
Override default variable values using CLI argument -var
Override default variable values using Environment Variables (TF_VAR_aa)
Provide Input Variables using terraform.tfvars files
Provide Input Variables using <any-name>.tfvars file with CLI argument -var-file
Provide Input Variables using auto.tfvars files
Implement complex type constructors like List & Map in Input Variables
Implement Custom Validation Rules in Variables
Protect Sensitive Input Variables

More detailed section about Terraform Input Variables and practical examples in Kalyan’s hashicorp-certified-terraform-associate GitHub Repository under this address:

https://github.com/stacksimplify/hashicorp-certified-terraform-associate/tree/main/05-Terraform-Variables

Implement Input Variables #

Declare Variables #

📄 File: c2-variables.tf

# INFO: Input Variables
# INFO: https://developer.hashicorp.com/terraform/language/block/variable

# INFO: AWS Region
variable "aws_region" {
  description = "Region in which AWS Resources will be created"
  type        = string
  default     = "eu-west-2"
}

# INFO: EC2 Instance Type
variable "instance_type" {
  description = "EC2 Instance Type"
  type        = string
  default     = "t3.nano"
}

# INFO: EC2 Instance Key Pair
variable "instance_keypair" {
  description = "EC2 Instance Key Pair associated with EC2 Instance"
  type        = string
  default     = "terraform-key"

}

Terraform Block #

📄 File: c1-versions.tf

# INFO: Terraform Block
# INFO: https://registry.terraform.io/providers/hashicorp/aws/latest/docs#example-usage

terraform {
  required_version = "~> 1.13.0" # NOTE: Greater than 1.13.2. Only the most upright version number (.0) can change.
  required_providers {
    aws = {
      source  = "hashicorp/aws"
      version = "~> 6.0" # NOTE: Greater than 6.0. Only the most upright version number (.0) can change.
    }
  }
}

# INFO: Provider Block
provider "aws" {
  region = var.aws_region
}

ℹ️ Note: region = var.aws_region is now referring to a variable declared in c1-variables.tf file.

AWS Provider

More info:

Create Security Groups #

📄 File: c3-ec2securitygroups.tf

# INFO: Create Ingress Security Group - SSH Traffic
# INFO: https://registry.terraform.io/providers/hashicorp/aws/latest/docs/resources/security_group#example-usage

resource "aws_security_group" "vpc-ssh" {
  name        = "vpc-ssh"
  description = "Dev VPC SSH"

  tags = {
    Name = "vpc-ssh"
  }
}

resource "aws_vpc_security_group_ingress_rule" "vpc-ssh_ipv4" {
  description       = "Allow Port 22 INBOUND"
  security_group_id = aws_security_group.vpc-ssh.id
  cidr_ipv4         = "0.0.0.0/0"
  from_port         = 22
  ip_protocol       = "tcp"
  to_port           = 22

  tags = {
    "Name" = "vpc-ssh-inbound"
  }
}

# INFO: Create Ingress Security Group - WEB Traffic - 80

resource "aws_security_group" "vpc-web-80" {
  name        = "vpc-web-80"
  description = "Dev VPC WEB"

  tags = {
    Name = "vpc-web-80"
  }
}

resource "aws_vpc_security_group_ingress_rule" "vpc-web-80_ipv4" {
  description       = "Allow Port 80 INBOUND"
  security_group_id = aws_security_group.vpc-web-80.id
  cidr_ipv4         = "0.0.0.0/0"
  from_port         = 80
  ip_protocol       = "tcp"
  to_port           = 80

  tags = {
    "Name" = "vpc-web-80-inbound-80"
  }
}

# INFO: Create Ingress Security Group - WEB Traffic - 80

resource "aws_security_group" "vpc-web-443" {
  name        = "vpc-web-443"
  description = "Dev VPC WEB"

  tags = {
    Name = "vpc-web-443"
  }
}

resource "aws_vpc_security_group_ingress_rule" "vpc-web-443_ipv4" {
  description       = "Allow Port 443 INBOUND"
  security_group_id = aws_security_group.vpc-web-443.id
  cidr_ipv4         = "0.0.0.0/0"
  from_port         = 443
  ip_protocol       = "tcp"
  to_port           = 443

  tags = {
    "Name" = "vpc-web-443-inbound-443"
  }
}

# INFO: Create Egress Security Group - ALL

resource "aws_security_group" "vpc-egress" {
  name        = "vpc-egress"
  description = "Dev VPC Egress"

  tags = {
    Name = "vpc-egress"
  }
}

resource "aws_vpc_security_group_egress_rule" "allow_all_traffic_ipv4" {
  description       = "Allow all IP and pports OUTBOUND"
  security_group_id = aws_security_group.vpc-egress.id
  cidr_ipv4         = "0.0.0.0/0"
  ip_protocol       = "-1" # semantically equivalent to all ports

  tags = {
    "Name" = "vpc-all-outbound"
  }
}

More about aws_security_group resource:

Resource: aws_security_group

Terraform Datasources #

Data Sources allow data to be fetched or computed for use elsewhere in Terraform configuration.

Use of data sources allows Terraform configuration to make use of information defined outside of Terraform or defined by another separate Terraform configuration.

A data source is accessed via a special kind of resource known as a data resource which determines the kind of object (objects) it reads and what query constraint arguments are available.

Data resources have the same dependency resolution behavior as defined or managed resources.

Setting the depends_on meta-argument within the data blocks defers reading of the data source until after all changes to the dependencies have been applier.

Create AMI Datasource Resource #

📄 File: c4-ami-datasource.tf

# INFO: Get the latest AWS AMI ID for Amazon2 Linux
# INFO: https://registry.terraform.io/providers/hashicorp/aws/latest/docs/data-sources/ami#example-usage

data "aws_ami" "amzlinux2" {
  #  executable_users = ["self"]
  most_recent = true
  #  name_regex       = "^myami-[0-9]{3}"
  owners = ["amazon"]

  filter {
    name   = "name"
    values = ["al2023-ami-*-x86_64"]
  }

  filter {
    name   = "architecture"
    values = ["x86_64"]
  }

  filter {
    name   = "root-device-type"
    values = ["ebs"]
  }

  filter {
    name   = "virtualization-type"
    values = ["hvm"]
  }
}

More info:

AMI Datasource

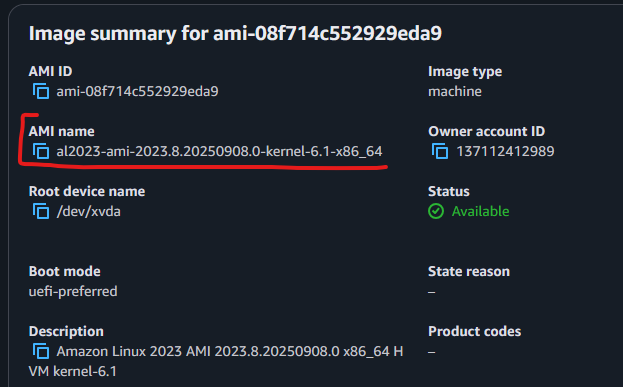

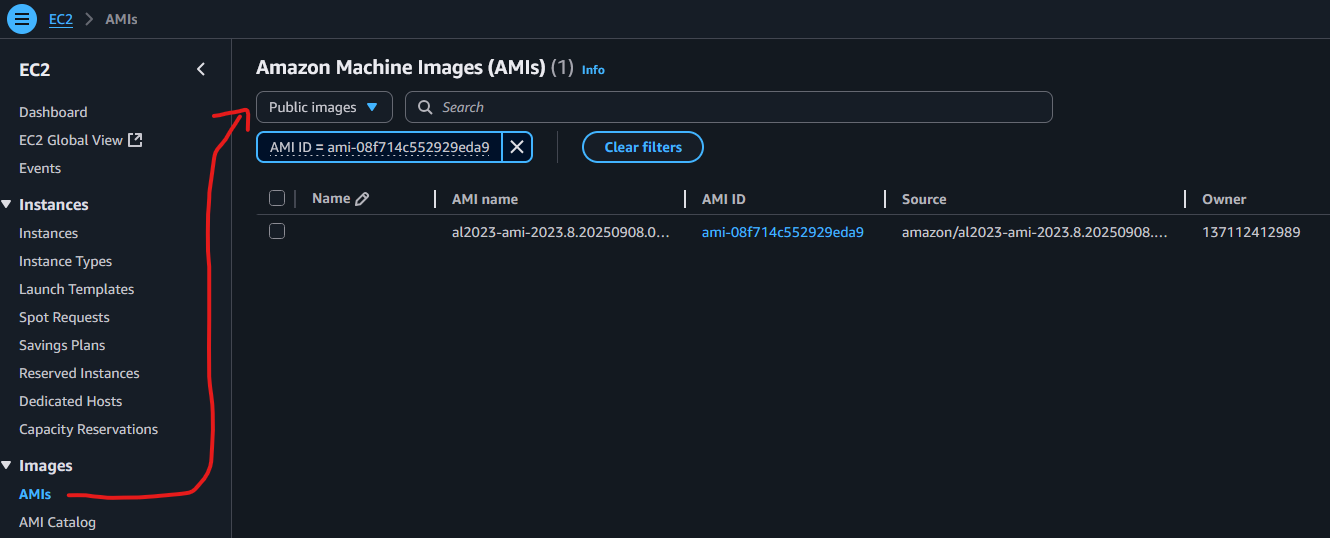

💡 Finding AMI for filter value values = ["al2023-ami-*-x86_64"]:

Create EC2 Instance #

📄 File: c5-ec2instance.tf

# INFO: Create EC2 Instance
# INFO: https://registry.terraform.io/providers/hashicorp/aws/latest/docs/resources/instance#example-usage

# EC2 Instance
resource "aws_instance" "myec2vm" {
  ami           = data.aws_ami.amzlinux2.id
  instance_type = var.instance_type
  user_data     = file("${path.module}/app1-install.sh") # NOTE: Apply User Data
  key_name      = var.instance_keypair                   # NOTE: Attach Key-Pair ID
  vpc_security_group_ids = [                             # NOTE: Attach INGRESS SG
    aws_security_group.vpc-ssh.id,
    aws_security_group.vpc-web-80.id,
    aws_security_group.vpc-web-443.id,
    aws_security_group.vpc-egress.id # NOTE: Attach EGRESS SG
  ]
  tags = {
    "Name" = "EC2 Demo 2"
  }
}

More about EC2 Instance resource:

Resource: aws_instance

Terraform Output Values #

The output block lets you expose information about your infrastructure.

📄 File: c6-outputs.tf

# INFO: Terraform Output Values
# INFO: https://developer.hashicorp.com/terraform/language/block/output

output "instance_publicip" {
  description = "EC2 Instance Public IP"
  value       = aws_instance.myec2vm.public_ip
}

output "instance_publicdns" {
  description = "EC2 Instance Public DNS"
  value       = aws_instance.myec2vm.public_dns
}

More about Output Values:

Output Block Reference

» Sources « #

Terraform:

Kalyan’s GitHub Repositories:

https://github.com/stacksimplify/terraform-on-aws-ec2/tree/main/04-Terraform-Variables-and-Datasources

» Disclaimer « #

This series draws heavily from Kalyan Reddy Daida’s Terraform on AWS with SRE & IaC DevOps course on Udemy.

His content was a game-changer in helping me understand Terraform.
