Building AWS VPC
📚 Part 4 of 8: "Terraform on AWS" series.
Table of Contents
👨🏻💻Part 1: Building VPC manually #

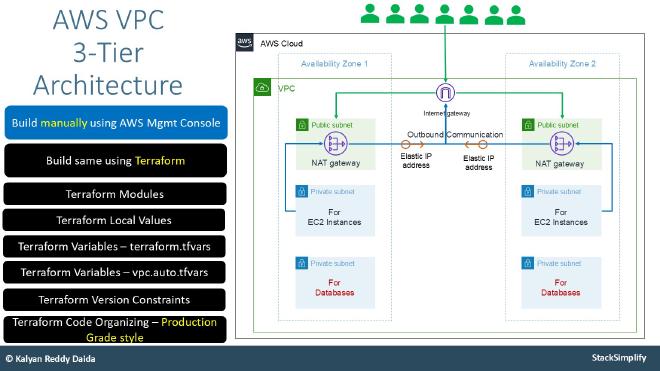

VPC Components #
- Create VPC
- 2 AZ
- Public Subnets
- Private Subnets
- 2 AZ
- Create Internet Gateway and Associate to VPC
- Create NAT Gateway in Public Subnet
- Create Public Route Table, Add Public Route via Internet Gateway and Associate Public Subnet
- Create Private Route Table, Add Private Route via NAT Gateway and Associate Private Subnet
flowchart RL
%% Class Definitions
classDef redclass fill:#EB4925
classDef redclasss stroke:#EB4925
classDef yellowclass stroke:#EBAC25
classDef greenclass stroke:#C7EB25
%% External Internet
Internet["☁️ Internet"]
%% VPC container
subgraph VPC["AWS VPC"]
%% IGW + NATs
IGW["Internet Gateway"]:::redclass
NAT1["NAT Gateway AZ1"]:::redclasss
NAT2["NAT Gateway AZ2"]:::redclasss
%% AZ1
subgraph AZ1["AZ1"]
Pub1["Public Subnet AZ1
(0.0.0.0/0 ↔ IGW)"]:::greenclass Priv1["Private Subnet AZ1
(0.0.0.0/0 ↔ NAT1)"]:::redclasss end %% AZ2 subgraph AZ2["AZ2"] Pub2["Public Subnet AZ2
(0.0.0.0/0 ↔ IGW)"]:::greenclass Priv2["Private Subnet AZ2
(0.0.0.0/0 ↔ NAT2)"]:::redclasss end %% Public subnet traffic (bi-directional) Pub1 <--> IGW Pub2 <--> IGW %% Private subnet traffic (bi-directional) Priv1 --> NAT1 Priv2 --> NAT2 %% NAT ↔ IGW (bi-directional) NAT1 --> IGW NAT2 --> IGW end %% IGW ↔ Internet (bi-directional) IGW <--> Internet
(0.0.0.0/0 ↔ IGW)"]:::greenclass Priv1["Private Subnet AZ1
(0.0.0.0/0 ↔ NAT1)"]:::redclasss end %% AZ2 subgraph AZ2["AZ2"] Pub2["Public Subnet AZ2
(0.0.0.0/0 ↔ IGW)"]:::greenclass Priv2["Private Subnet AZ2
(0.0.0.0/0 ↔ NAT2)"]:::redclasss end %% Public subnet traffic (bi-directional) Pub1 <--> IGW Pub2 <--> IGW %% Private subnet traffic (bi-directional) Priv1 --> NAT1 Priv2 --> NAT2 %% NAT ↔ IGW (bi-directional) NAT1 --> IGW NAT2 --> IGW end %% IGW ↔ Internet (bi-directional) IGW <--> Internet
1. Create VPC #
IAM console > VPC
- Name: my-manual-vpc
- IPv4 CIDR Block: 10.0.0.0/16
2. Create Subnets #
IAM console > VPC > Subnets
ℹ️ For the purpose of the manual exercise, we are only creating subnets in 1 AZ. With terraform we will spread the infrastructure across 2 AZ.
Public Subnets #
- VPC ID: my-manual-vpc
- Subnet Name: my-public-subnet-1
- Availability zone: eu-west-2a
- IPv4 CIDR Block: 10.0.1.0/24
Private Subnets #
- Subnet Name: my-private-subnet-1
- Availability zone: eu-west-2a
- IPv4 CIDR Block: 10.0.101.0/24
DB Subnets #
- VPC ID: my-manual-vpc
- Subnet Name: my-db-subnet-1
- Availability zone: eu-west-2a
- IPv4 CIDR Block: 10.0.201.0/24
No association with NAT or Internet Gateway is required for the DB subnet as Databases will not require outbound communication.
3. Create IGW and associate it with VPC #
IAM console > VPC > Internet gateways
- Name Tag: my-igw
- Click on Create Internet Gateway
- Click on Actions -> Attach to VPC -> my-manual-vpc
4. Create NAT Gateway #
💡NAT Gateway should always be placed in the Public Subnet.
IAM console > VPC > NAT gateways
- Name: my-nat-gateway
- Subnet: my-public-subnet-1
- Allocate Elastic Ip: click on that
- Click on Create NAT Gateway
5. Create Public Route Table, Create Routes, Associate Subnets #
Create Public Route Table #
IAM console > VPC > Route tables
- Name tag: my-public-route-table
- vpc: my-manual-vpc
- Click on Create

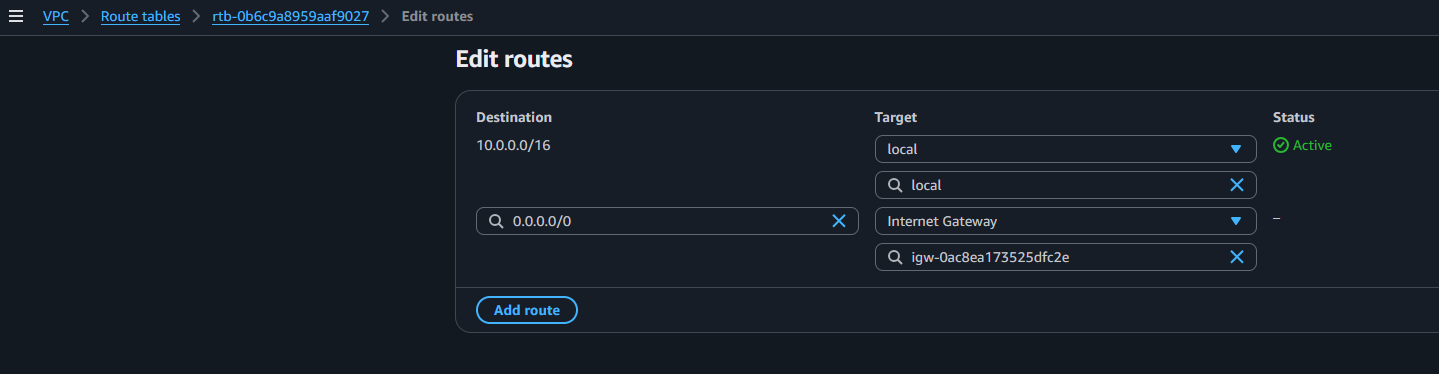

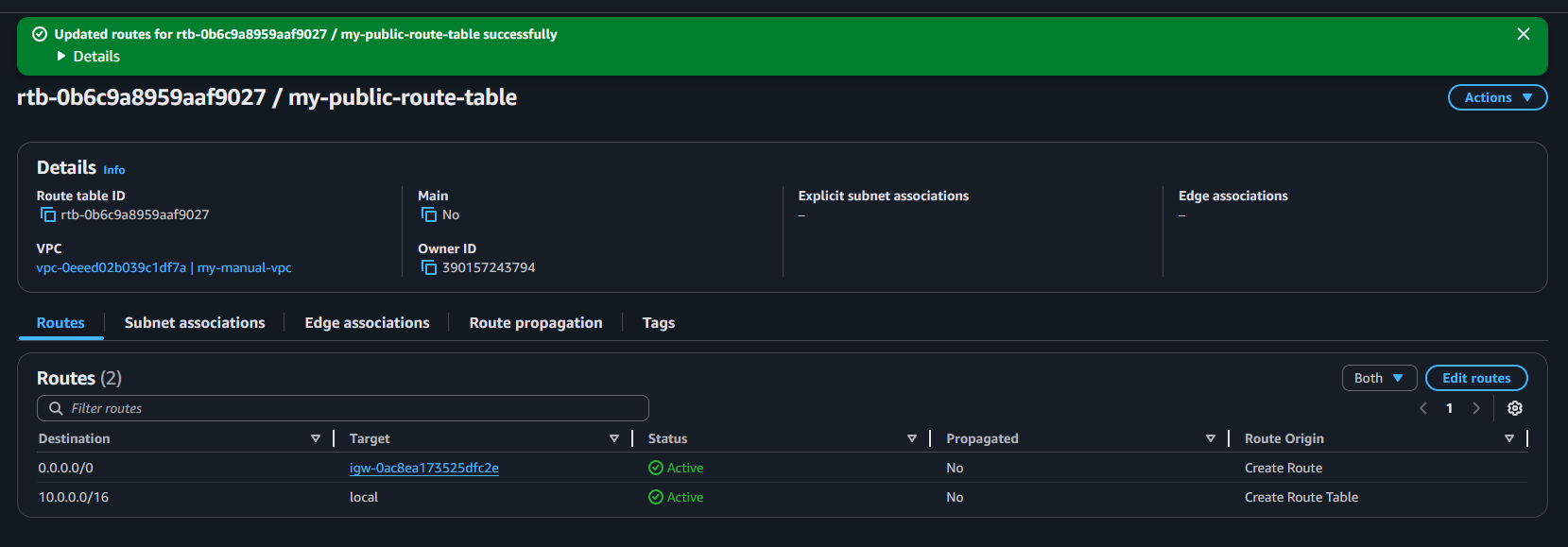

Create Public Route in newly created Route Table #
IAM console > VPC > Route tables > my-public-route-table > Routes
- Click on Edit Routes > Add Route
- Add Destination: 0.0.0.0/0
- Target: my-igw
- Click on Save Route

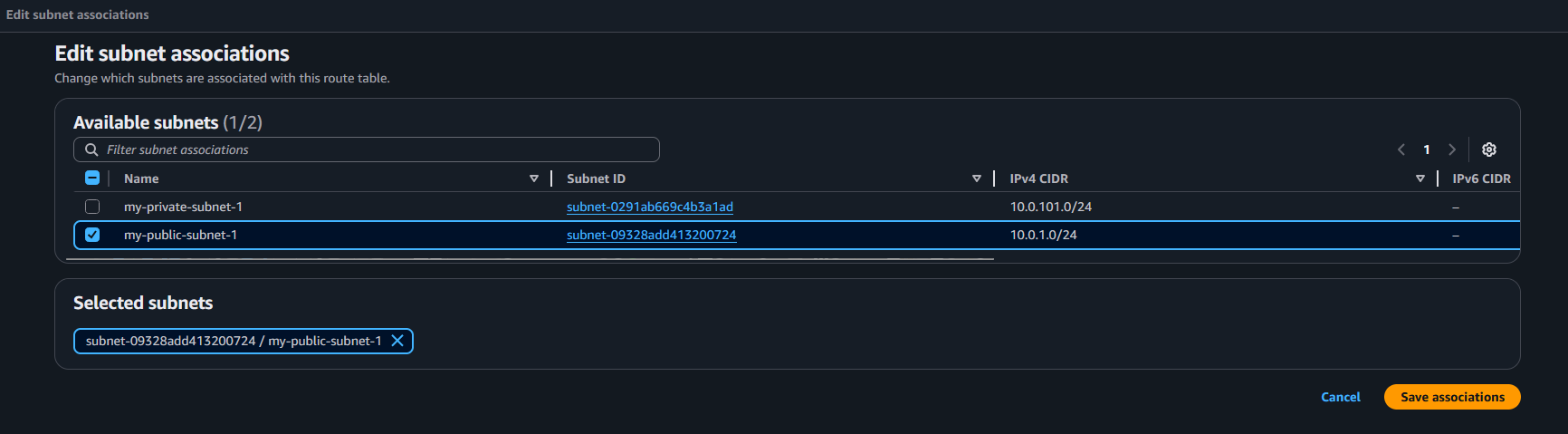

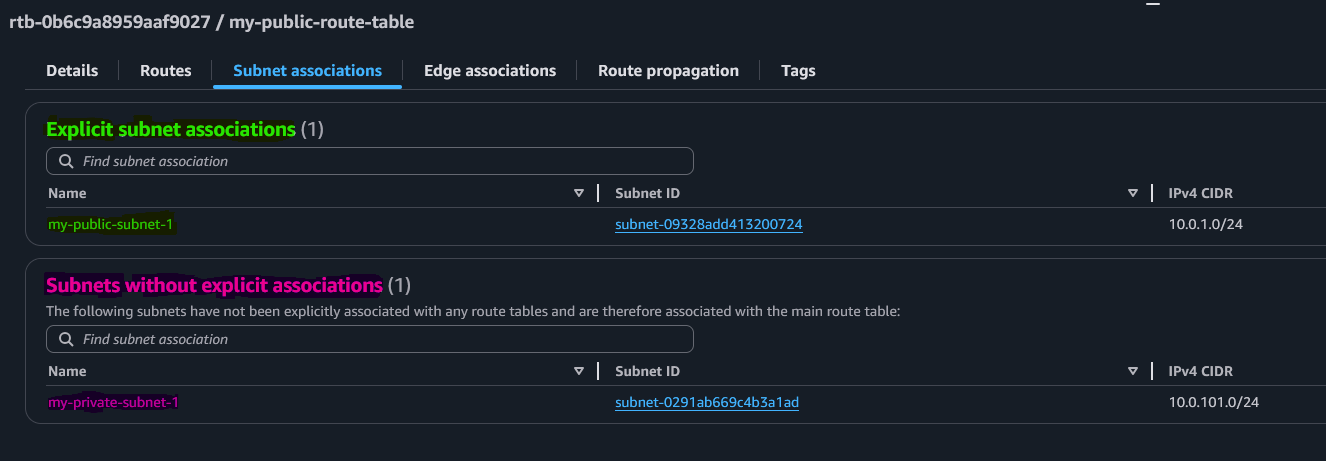

Associate Public Subnet 1 in Route Table #
IAM console > VPC > Route tables > my-public-route-table > Subnet associations > Explicit subnet associations
- Click on Edit Subnet Associations
- Select my-public-subnet-1
- Click on Save


6. Create Private Route Table, Create Routes, Associate Subnets #
Create Private Route Table #
IAM console > VPC > Route tables
- Name tag: my-private-route-table
- vpc: my-manual-vpc
- Click on Create

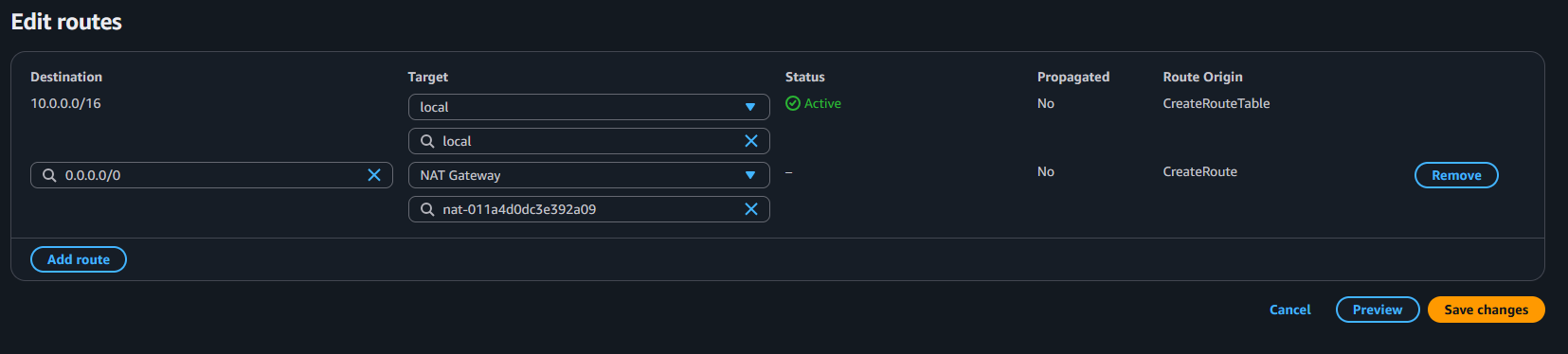

Create Private Route in newly created Route Table #
IAM console > VPC > Route tables > my-private-route-table > Routes
- Click on Edit Routes > Add Route
- Destination: 0.0.0.0/0
- Target: my-nat-gateway
- Click on Save Route

Associate Private Subnet 1 in Route Table #
IAM console > VPC > Route tables > my-public-route-table > Subnet associations > Explicit subnet associations
- Click on Edit Subnet Associations
- Select my-private-subnet-1
- Click on Save
7. Clean-Up #
- Delete
my-nat-gateway - Wait till NAT Gateway is deleted
- Delete
my-manual-vpc
📄Part 2: Building VPC using Terraform #
File: 📄c2-generic-variables.tf
# INFO: Input Variables
# INFO: https://developer.hashicorp.com/terraform/language/block/variable
# INFO: AWS Region
variable "aws_region" {
description = "Region in which AWS Resources will be created"
type = string
default = "eu-west-2"
}
# INFO: Environment Variable
variable "environment" {
description = "Environment Variable used as a prefix"
type = string
default = "DEV"
}
# INFO: Business Division
variable "business_division" {
description = "Business Division in the large organization this Infrastructure belongs"
type = string
default = "Operations"
}
# ! Default values will be overwritten in terraform.tfvars
File: 📄c3-local-values.tf
# INFO: Local Values
# INFO: https://developer.hashicorp.com/terraform/language/block/locals
# INFO: slice Function used for AZ's: https://developer.hashicorp.com/terraform/language/functions/slice
data "aws_availability_zones" "available" {}
locals {
owners = var.business_division
environment = var.environment
name = "${var.business_division}-${var.environment}"
#name = "${local.owners}-${local.environment}"
azs = slice(data.aws_availability_zones.available.names, 0, 2)
common_tags = {
owners = local.owners
environment = local.environment
}
}
File: 📄c4-01-vpc-variables.tf
# INFO: VPC Input Variables required by VPC module
# INFO: https://registry.terraform.io/modules/terraform-aws-modules/vpc/aws/latest
# INFO: VPC Name
variable "vpc_name" {
description = "VPC Name"
type = string
default = "myvpc"
}
# INFO: VPC CIDR Block
variable "vpc_cidr" {
description = "VPC CIDR Block"
type = string
default = "10.0.0.0/16"
}
File: 📄c4-02-vpc-module.tf
# INFO: Create VPC using Terraform Module
# INFO: https://registry.terraform.io/modules/terraform-aws-modules/vpc/aws/latest
module "vpc" {
source = "./modules/aws-vpc"
#version = "~> 6.4.0"
name = "${local.name}-${var.vpc_name}"
cidr = var.vpc_cidr
azs = local.azs
private_subnets = [for k, v in local.azs : cidrsubnet(var.vpc_cidr, 8, k)]
public_subnets = [for k, v in local.azs : cidrsubnet(var.vpc_cidr, 8, k + 4)]
database_subnets = [for k, v in local.azs : cidrsubnet(var.vpc_cidr, 8, k + 8)]
create_database_subnet_group = true
create_database_subnet_route_table = true
enable_nat_gateway = true
single_nat_gateway = true
tags = local.common_tags
}
File: 📄c4-03-vpc-outputs.tf
# INFO: Output VPC ID
output "vpc_id" {
description = "The ID of the VPC"
value = module.vpc.vpc_id
}
# INFO: Output VPC CIDR block
output "vpc_cidr_block" {
description = "The CIDR block of the VPC"
value = module.vpc.vpc_cidr_block
}
# INFO: Output Private Subnets Information
output "private_subnets" {
description = "List of IDs of private subnets"
value = module.vpc.private_subnets
}
output "private_subnets_cidr_blocks" {
description = "List of cidr_blocks of private subnets"
value = module.vpc.private_subnets_cidr_blocks
}
# INFO: Output Public Subnets Information
output "public_subnets" {
description = "List of IDs of public subnets"
value = module.vpc.public_subnets
}
output "public_subnets_cidr_blocks" {
description = "List of cidr_blocks of public subnets"
value = module.vpc.public_subnets_cidr_blocks
}
# INFO: Output Database Subnets Information
output "database_subnets" {
description = "List of IDs of database subnets"
value = module.vpc.database_subnets
}
output "database_subnets_cidr_blocks" {
description = "List of cidr_blocks of database subnets"
value = module.vpc.database_subnets_cidr_blocks
}
output "database_subnet_group" {
description = "ID of database subnet group"
value = module.vpc.database_subnet_group
}
# INFO: Output NAT Gateway route IDs
output "private_nat_gateway_route_ids" {
description = "List of IDs of the private nat gateway route"
value = module.vpc.private_nat_gateway_route_ids
}
# INFO: Output Availability Zones
output "azs" {
description = "A list of availability zones spefified as argument to this module"
value = local.azs
}
File: 📄terraform.tfvars
# ! This will overwrite default values from c2-generic-variables.tf
aws_region = "eu-west-2"
environment = "UAT"
business_division = "Training"
File: 📄vpc.auto.tfvars
# ! This will overwrite default values from c2-generic-variables.tf
vpc_name = "myvpc"
vpc_cidr = "10.0.0.0/16"
